Item # MD220-T643, Amana A.G.E. Series Double-Sided Melamine Saw Blades: H-ATB Grind
$104.53
Download as PDF
Thank you for shopping with us!
Smooth, clean cuts in double-sided melamine.

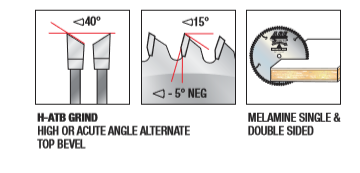

Designed for cutting double-sided melamine and veneered sheet goods on saws without a scoring unit. The H-ATB tooth geometry slices clearly through fragile coatings and laminates. The high bevel will not " violate" the bottom laminate upon exiting the cut, which causes " blow-out." Extra hard sub-micrograin carbide tips for long life.
MD220-T643: For Holz-Her® panel saw.
Warning: Not recommended for cutting non-ferrous alloys.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 220 mm |
| Bore | 30 mm |
| Grind | H-ATB |
| Kerf | 0.126 in |
| Hook Angle | -5 deg |
| Note | For Holz-Her panel saw |
| Pinholes | 2/10/60, 2/7/42 & 2/9/46 |
| Plate | 0.079 in |
| RPM | 8,700 |
| Teeth | 64 |
