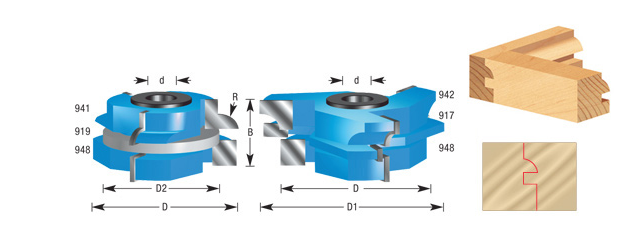

Item # 940, Amana Tool 2-Piece Carbide Tipped 3-Wing Stile & Rail Concave Cabinet Door 2-1/2 Dia x 1-17/64 x 5/16 Radius x 1/2 & 3/4 Bore Set for 1-5/16 Material: Concave
$243.52
Download as PDF
Thank you for shopping with us!

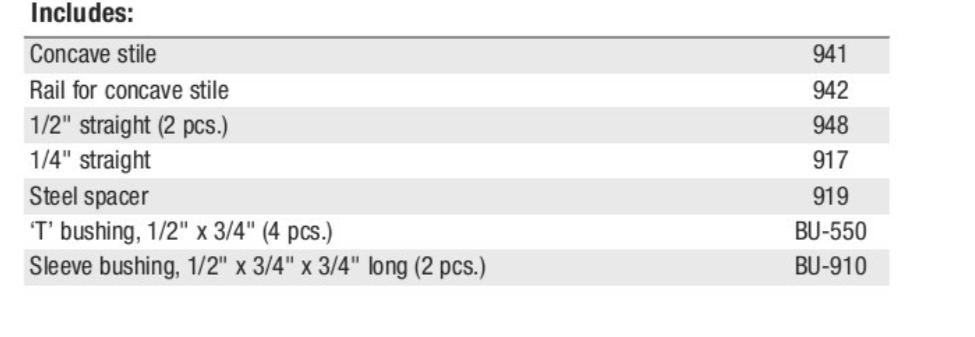

Includes:
941 - Concave stile
942 - Rail for concave stile
948 - 1/2" straight (2 pcs)
917 - 1/4" straight
919 - Steel spacer
BU-550 - 'T' bushing 1/2" x 3/4" (4 pcs)
BU-910 - Sleeve bushing 1/2" x 3/4" x 3/4" long (2 pcs)
Includes:
941 - Concave stile
942 - Rail for concave stile
948 - 1/2" straight (2 pcs)
917 - 1/4" straight
919 - Steel spacer
BU-550 - 'T' bushing 1/2" x 3/4" (4 pcs)
BU-910 - Sleeve bushing 1/2" x 3/4" x 3/4" long (2 pcs)
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3/8 in |
| Bore | 1/2 in & 3/4 in |
| Cut Height, Length, or Width | 1 1/4 in |
| Diameter (D1) | 1 7/8 in |
| Includes | Concave Stile, Rail, 1/2 in Straight (2pcs), 1/4 in Straight, Steel Spacer, T-Bushing, Sleeve Bushing |
| Note | Rub collar for 3/4 in arbor only. Rub collar sold separately. |
| Rub Collar | C-008; C-016 |
