Item # 57163, Amana Tool Karran® Carbide-Tipped Lansen Edge Sink Solid Surface 2-3/8" Dia x 13/16" CH x 45 Deg Bevel x 1/2" Shank
Download as PDF
Thank you for shopping with us!

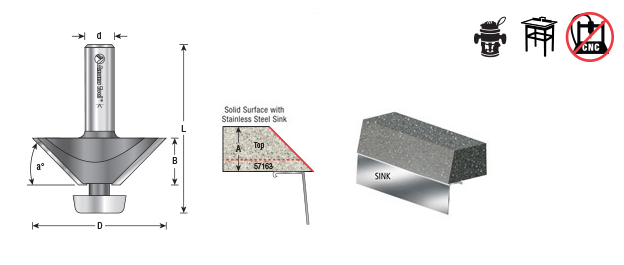

This bit is designed specifically for use for the Karran® stainless steel edge sinks for laminate and 1/2" solid surface materials. The bits trim the countertop edge after the bowl is mounted.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 2 3/8 in |
| Cut Depth | 1/2 or 3/4 in |
| Cut Height, Length, or Width | 13/16 in |
| Replacement Parts | #67147 screw |
| Bearing(s) | Ultra-Glide bearing #47765 |
| Flute | 2 w/Nylon Bearing |
| Note | -- |
| Overall Length | 2 7/8 in |
| Shank | 1/2 in |
| Type | Bevel |
| Angle | 45 deg |
