Item # 49555, Amana Tool Table Edges Carbide-Tipped 2 21/64" D x 1/2" R x 1/2" Shank 2-Flute w/Ball Bearing Guide
$122.31
Download as PDF
Thank you for shopping with us!
Amana Tool Table Edges Carbide-Tipped 2 21/64" D x 1/2" R x 1/2" Shank 2-Flute w/Ball Bearing Guide
This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail, and reduce the visual thickness of the top.
Reverse Curve: The broad curves of this ogee create a wide elegant table edge. Notice that the curve continues slightly under the top to make a large tabletop appear thin.
Replacement bearing #47718
Amana Tool Table Edges Carbide-Tipped 2 21/64" D x 1/2" R x 1/2" Shank 2-Flute w/Ball Bearing Guide
This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail, and reduce the visual thickness of the top.
Reverse Curve: The broad curves of this ogee create a wide elegant table edge. Notice that the curve continues slightly under the top to make a large tabletop appear thin.
Replacement bearing #47718

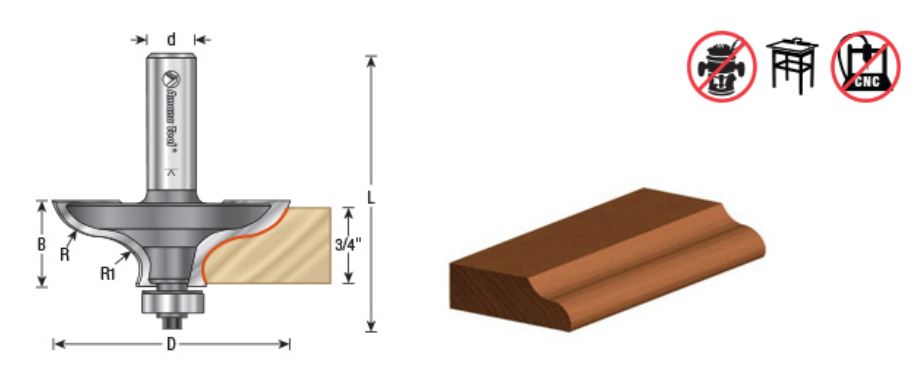

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 2 21/64 in |
| Cut Height, Length, or Width | 55/64 in |
| Bearing(s) | 47718, Amana Tool 3/16 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide |
| Flute | 2 w/Bearing |
| Note | Profiles are designed for 3/4 in thick tops. |
| Overall Length | 2 3/4 in |
| Radius | 1/2 in |
| R1/Radius | 1/4 in |
| Shank | 1/2 in |
| Type | Reverse Curve |
