Amana Tool Table Edges Carbide-Tipped 2-Flute w/Ball Bearing GuideEdge of Arlington offers free shipping in the United States when you choose flat rate shipping This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail, and reduce the visual thickness of the top. Profile Sample 49555:  Replacement bearing #47718  |
Download as PDF| Item # | Diameter | Bearing(s) | Cut Height/Length | Flute | Overall Length | Radius | R1/Large Radius | Shank | Type | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49555 | 2 21/64 in | 47718, Amana Tool 3/16 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide | 55/64 in | 2 w/Bearing | 2 3/4 in | 1/2 in | 1/4 in | 1/2 in | Reverse Curve | $136.69 | Add to cart | |
| 49557 | 2 7/64 in | 47718, Amana Tool 3/16 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide | 27/32 in | 2 w/Bearing | 2 3/4 in | 1/4 in | 7/16 in | 1/2 in | Cove & Thumbnail | $107.62 | Add to cart | |

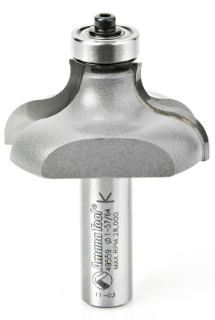

| 49559 | 1 57/64 in | 47718, Amana Tool 3/16 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide | 7/8 in | 2 w/Bearing | 2 3/4 in | 3/8 in | 5/16 in | 1/2 in | Ogee | $102.53 | Add to cart | |
| 49563 | 2 3/8 in | 47718, Amana Tool 3/16 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide | 27/32 in | 2 w/Bearing | 2 25/32 in | 1/16 in | N/A | 1/2 in | Thumbnail | $141.43 | Add to cart |
