Amana Tool Finger Joint Assembly Carbide-Tipped 2-Wing w/Ball Bearing Guide

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

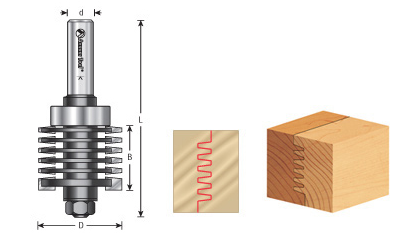

For joining wood end-to-end as well as edge-to-edge. Rout one workpiece face up, and the other face down. When the bit height is correct, the two pieces should slide together with their faces perfectly flush. The assembly includes five 2-wing finger cutters, one 2-wing straight cutter, a ball bearing guide, a 1/2″ shank arbor, shims, spacers, and washers. The number of finger cutters used varies with the stock thickness; it can handle stock between 7/16″ and 1 3/8″ thick. For best results run at full speed in 1 1/2 horsepower table-mounted router. Includes full-color instructions.

Replacement Parts:

55394 – finger cutter (5 required)
55396 – straight cutter (1 required)
47736 – ball bearing (5/16″ x 28mm)
47620 – 1/2″ shank arbor with nut
55367 – 3.4mm spacer (7 required)
55368 – 6.0mm spacer (1 required)
55357 – 0.1mm shim (10 required)
55404 – 0.5mm shim (1 required)
55402 – 1.0mm washer (2 required)

EOASAW - Amana Tool Finger Joint Assembly Carbide-Tipped 2-Wing w/Ball Bearing Guide
Item # DiameterCut Height/LengthOverall LengthShankWings Price Add To Cart
Compare 55392 1 9/16 in1 3/8 in3 3/4 in1/2 in2-Wing w/Ball Bearing Guide $139.28 Add to cart
Compare 55394 N/AN/AN/AN/AN/A $26.73 Add to cart
Compare 55396 N/AN/AN/AN/AN/A $26.74 Add to cart
