Item # RC-1177, Amana Tool CNC Double Edge Folding 'V' Groove for Shaping Composite Material Panels Solid Carbide Insert Knife 130°, 2 1/8" Dia x 1/2" Shank Router Bit (Industrial)

Download as PDF
Thank you for shopping with us!

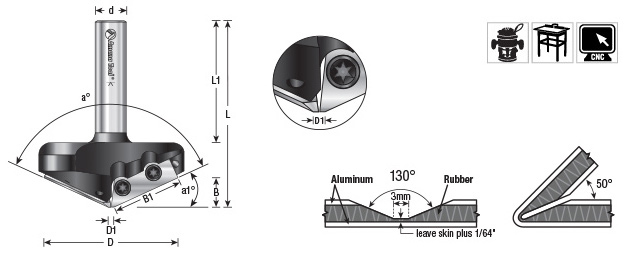

Amana Tool CNC Double Edge Folding 'V' Groove for Shaping Composite Material Panels Solid Carbide Insert Knife 130°, 2 1/8" Dia x 1/2" Shank Router Bit (Industrial) widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding the remaining material by hand.

Feed Rate (IPM) for RC-1177: 320 IPM

Designed for cutting and scoring aluminum sandwich materials including:

  • Aluminum, Clay, Zinc & Wood Composite Panels

  • Aluminum Composite Materials (ACM)

  • Aluminum Composite Panel (ACP)

  • ALPOLIC® Copper Composite Material (CCM)

  • Alucobond®

  • Alupanel®

  • Dibond®

  • Durabond

  • e-panel™

  • Etalbond®

  • Phenolics

  • Plastic/Acrylic

  • Plexiglas®

  • Titanium Composite Material (TCM)

  • Wood


MAX RPM: 18,000

SPECIFICATIONS
ManufacturerAmana Tool
Diameter2 1/8 in
Cut Height, Length, or Width15/32 in
Diameter (D1)3 mm
Flute2
Overall Length3 in
Shank1/2 in
Angle130 deg
KnivesRCK-446 - Optional GP RCK-136; MDF RCK-353
