Item # RC-1126, Amana Tool Carbide-Tipped CNC Ball End Insert 1/2" Radius x 1" Dia x 1/2" x 1/2" Shank 2-Flute (Industrial)

$77.85

Download as PDF

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping

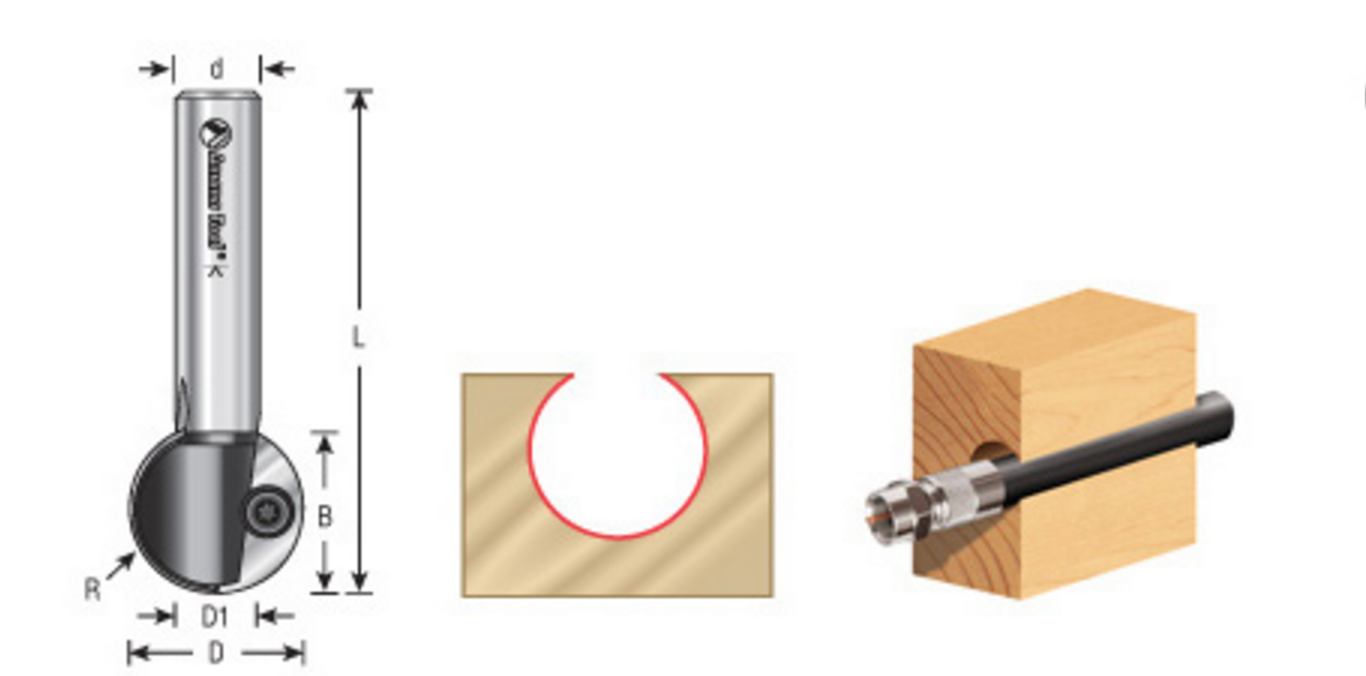

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Max RPM 18,000

Warning: These tools have an open flute design (not anti-kickback) and are intended for high feed rate CNC machine use only. Do not use in portable routers!







SPECIFICATIONS
Diameter1 in
Cut Height/Length15/16 in
Flute2
Overall Length2 7/8 in
Radius1/2 in
Shank1/2 in
NoteProfile is useful as a conduit in for cables, pipes, etc. Warning: Max RPM = 18,000
ManufacturerAmana Tool
