Item # RB1224-30, Amana Tool Carbide-Tipped Euro Rip with Cooling Slots 12 Inch Dia x 24T FT, 18 Deg, 30mm Bore
$113.56
Download as PDF
Thank you for shopping with us!
Designed for ripping hardwood and softwood, this exceptional blade cuts fast and smooth. The flat-top grind and the high positive hook angle (20°) reduce feed effort. The anti-kickback limits the thickness of chip, to offer a safer cut. Cooling slots in the body prevent excessive heat build up.
Warning: Before use, read saw blade safety guidelines in Amana's catalog.
Designed for ripping hardwood and softwood, this exceptional blade cuts fast and smooth. The flat-top grind and the high positive hook angle (20°) reduce feed effort. The anti-kickback limits the thickness of chip, to offer a safer cut. Cooling slots in the body prevent excessive heat build up.
Warning: Before use, read saw blade safety guidelines in Amana's catalog.

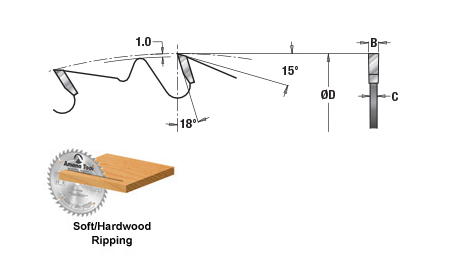

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 12 in (300 mm) |
| Bore | 30 mm |
| Grind | FT |
| Kerf | 0.126 in |
| Note | P.H. = pin-hole configuration. Example: 2/10/60 = 2 @ 10mm dia on 60mm circle. |
| Pinholes | 2/7/42 & 2/10/60 |
| Plate | .087 in |
| Teeth | 24 |
| Hook Angle | 18 deg |
