Item # PC 10-211, Freeborn (6-Piece 1/2" Depth of Pattern Cutter Sets) Deeper Profile Cope and Pattern Cutter Sets - 1-1/4" Bore (Pro-Line), 3-Wing, 4.25" Dia

$624.51

Download as PDF
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

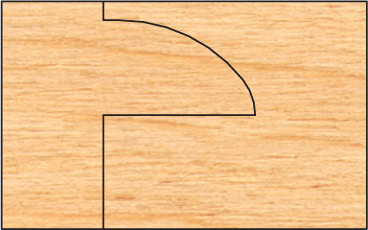

New Deeper Profile Sets. Versatile and easy to use. These 6-piece cutter sets are designed to perform the 3 functions shown. Our standard sets cut 1/4" wide x 1/2" deep tongue and groove. Our common minor diameter requires NO fence adjustment when changing from cope to pattern cuts (1/2" tongue only).

Counterclockwise rotation with wood fed face down. Optional tongue and groove cutters and eased edge and opposite rotation are available.

Pro-Line Shaper Cutters

  • 3 wing

  • 4.25" diameter

  • 1 1/4" bore

  • Runs with a rub bearing (AM-90-052)

SPECIFICATIONS
ManufacturerFreeborn Tool
Bearing(s)AP 90-052, Freeborn Ball Bearing Rub Collars - 1-1/4 in Bore (Pro-Line)
Bore1-1/4 in
NoteCope & Pattern Material Thickness Range - 3/4 to 1-1/8 in Glass Panel Material Thickness Range - 3/4 to 1 in Tongue & Groove Material Thickness Range - 3/4 in
Style1-1/4 in Bore (Pro-Line) Deeper Profile
Wings3
