Item # NRC-A03, Amana Tool Nova System™ Pair of Edge Form Knives for Body A - 1/8" Radius Corner Round
Download as PDF
Thank you for shopping with us!
The Nova System™ provides a wide range of profiling options in a single router bit with replaceable insert solid carbide knives. The innovation is in the bit. The easily replaceable hard carbide blades give an entire range of profile options in a single bit, as well as other vital advantages such as durability, versatility, safety, service-free, and cost effectiveness.
For edge form routing.

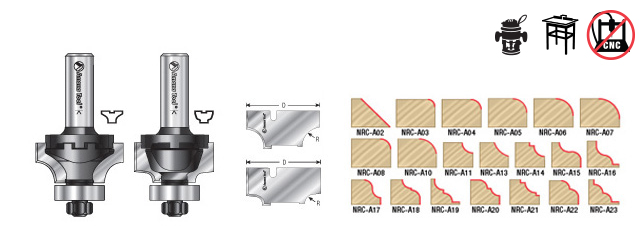

Ordering instructions: Choose the edge form body type 'A' #NS-104 (1/4" shank) or #NS-106 (1/2" shank), and then select the desired profile knives (NRC-A03 through NRC-A23).

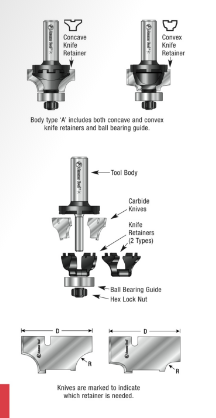

Body type 'A' includes both concave and convex knife retainers and ball bearing guide. Knives are marked to indicate which retainer is needed.
The Nova System™ provides a wide range of profiling options in a single router bit with replaceable insert solid carbide knives. The innovation is in the bit. The easily replaceable hard carbide blades give an entire range of profile options in a single bit, as well as other vital advantages such as durability, versatility, safety, service-free, and cost effectiveness.
For edge form routing.
Ordering instructions: Choose the edge form body type 'A' #NS-104 (1/4" shank) or #NS-106 (1/2" shank), and then select the desired profile knives (NRC-A03 through NRC-A23).
Body type 'A' includes both concave and convex knife retainers and ball bearing guide. Knives are marked to indicate which retainer is needed.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 3/8 in |
| Cut Height, Length, or Width | 11/16 in |
| Replacement Parts | Knife retaining screw #67084 (2 required), hex key #5007, hex lock nut #67089 |
| Bearing(s) | #47714 |
| Overall Length | -- |
| Radius | 1/8 in |
| Shank | -- |
| Angle | -- |
| Part Desc | Corner Round Edge Form Knives for Body A (sold as pair) |
| R1/Radius | -- |
