Item # LU5B3500, Freud® 550mm Dia, 30mm Arbor, TCG, 5 deg HA 148 Tooth Saw Blade to Cut Non-Ferrous Metals & PVC: Series LU5B
$455.54 Original price was: $455.54.$409.99Current price is: $409.99.
Thank you for shopping with us!
Carbide-Tipped blade for cutting aluminum, non-ferrous metals, and polymeric materials with Freud's exclusive TiCo Hi-Density Carbide designed and manufactured specifically for each cutting application to maximize cutting life.
Silent Sawblade. Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.
Machines: Single or double miter saws with mechanical clamping of the piece.

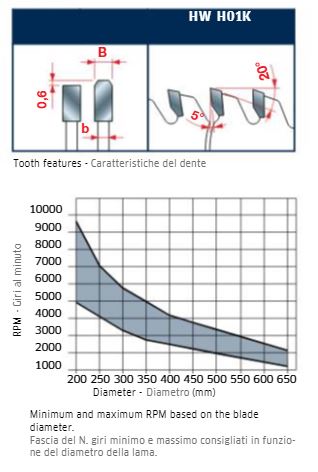

Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals, polymeric materials, PVC extruded profiles.
Non-Ferrous Metals: Ultimate
Plastic materials: Ultimate
PVC: High
Ideal For: To cut drawn products and tubes with a thickness included between 2mm and 5mm, as well as polymeric panels up to 20mm.
Carbide-Tipped blade for cutting aluminum, non-ferrous metals, and polymeric materials with Freud's exclusive TiCo Hi-Density Carbide designed and manufactured specifically for each cutting application to maximize cutting life.
Silent Sawblade. Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.
Machines: Single or double miter saws with mechanical clamping of the piece.
Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals, polymeric materials, PVC extruded profiles.
Non-Ferrous Metals: Ultimate
Plastic materials: Ultimate
PVC: High
Ideal For: To cut drawn products and tubes with a thickness included between 2mm and 5mm, as well as polymeric panels up to 20mm.
| SPECIFICATIONS | |
| Manufacturer | Freud Tools |
|---|---|
| Diameter | 550 mm |
| Arbor | 30 mm |
| Hook Angle | 5 deg |
| Kerf | 4.2 mm |
| Pinholes | 2/11/63 |
| Plate | 3.5 mm |
| Teeth | 148 |
| Type | Silver Ice |
