Item # LU5A05, Freud® Saw Blades to Cut Non-Ferrous Metals: Series LU5A

Original price was: $135.42.Current price is: $121.88.

Download as PDF
Thank you for shopping with us!

Carbide-Tipped blade ideal for cutting aluminum and non-ferrous metals. Incorporates Tri-Metal Brazing, which consists of copper sandwiched between two layers of silver alloy to create a stronger, more impact-resistant bond between the carbide and the blade body.

Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.

Machines: Single or double miter saws with mechanical clamping of the piece.
Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals.

Ideal For: To cut solid drawn products with a thickness included between 2mm and 10 mm.

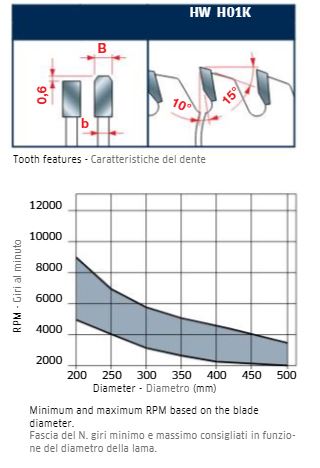

 Edge of Arlington Freud saw blade diagram

To peruse more comprehensive information on Freud® Tools Industrial Circular Saws—correct saw blade use, informational tips, technical information—click on the link to Industrial Saw Blades Catalog.
SPECIFICATIONS
Diameter300 mm
Arbor30 mm
Hook Angle10 deg
Kerf3.5 mm
Pinholes2/9/46.4 + 2/10/60
Plate3.0 mm
Teeth72
Note--
