Item # 61311, Amana Tool Insert Carbide Aluminum Adjustable Chamfer -90.0 to +90.0 x 170mm (6-11/16) Dia x 60mm (2 in) x 1-1/4 Bore (Industrial)
$470.24
Download as PDF
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.
Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood, and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Fine adjustment of 1° is also possible.
Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood, and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Fine adjustment of 1° is also possible.

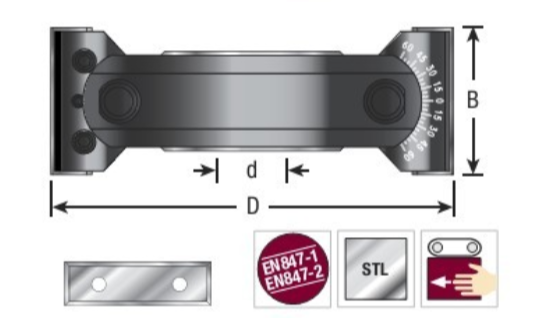

| SPECIFICATIONS | |
| Diameter | 6 11/16 in |
|---|---|
| Bore | 1 1/4 in |
| Cut Height, Length, or Width | 2 in |
| Overall Length | 6 11/16 in |
| RPM | 4,500 to 6,000 |
| Note | -- |
| Manufacturer | Amana Tool |
