Item # 55628, Amana Tool Carbide-Tipped 82 Degree Countersink Taper #12 Screw 1/2 Dia x 9/64 Drill Dia x 1/4 Hex Shank
$34.86
Download as PDF
Thank you for shopping with us!
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform and concentric results every time.
Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.
Replacement set screw #67083. Hex key #5009
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform and concentric results every time.
Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.
Replacement set screw #67083. Hex key #5009
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

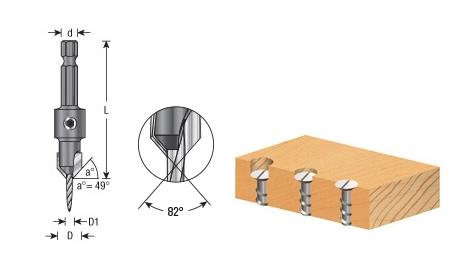

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1/2 in |
| Diameter (D1) | 9/64 in |
| Replacement Parts | Replacement Drill 630-268; hex key 5009; set screw 67083 |
| Overall Length | 2 1/8 in |
| Screw Size | #12 |
| Shank | 1/4 in |
| Angle | 49 deg |
