Item # 55130, Amana Tool Carbide-Tipped 82 Degree Shankless Countersink with Slow Spiral Drill, #20 Screw 5/8 Dia x 5/16 Drill Dia x 5/16 Drill Shank
$45.66
Download as PDF
Thank you for shopping with us!
Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic
Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic
Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

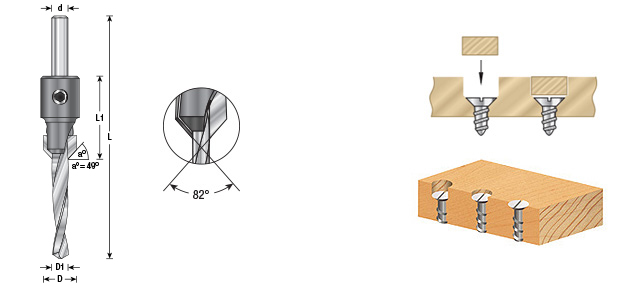

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 5/8 in |
| Diameter (D1) | 5/16 in |
| Replacement Parts | 630-704 |
| Flute | 2 |
| Length | 1 1/2 in |
| Overall Length | 4 5/8 in |
| Screw Size | #20 |
| Shank | 5/16 in |
| Wings | 2 |
