Item # 54229, Amana Tool Carbide-Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1/2 Inch Shank

$145.24

Download as PDF
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

Amana Tool Carbide-Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia  x 1/2 Inch Shank

Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8" . As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended.

Replacement bearing #47713 (8mm x 16mm) and #47763 (8mm x 1 1/4" )

Warning: Maximum RPM = 12,000

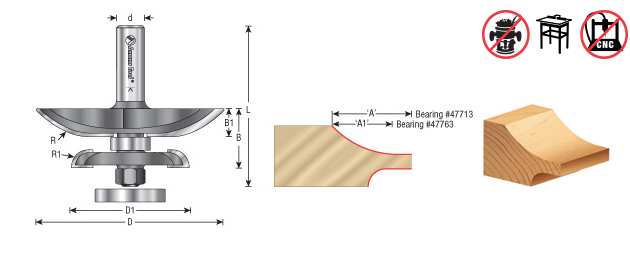

 Note: Reveal ('A') reflects the total length of cut. Therefore, you must deduct 3/8" (usually) for allowing the panel to recess into the frame. Note: To receive ('A1') use bearing #47763.
SPECIFICATIONS
Bearing(s)47763, Amana Tool 5/16 ID x 1-1/4 OD x .196 Thick Steel Ball Bearing Guide|47713, Amana Tool Metric 8mm ID x 16mm OD x 5mm Thick Steel Ball Bearing Guide
Cut Height /Length1 1/16 in
Diameter (D1)2 1/8 in
Flutes2 w/Bearing
ManufacturerAmana Tool
NoteReveal 'A' reflects the total length of cut. Therefore, you must deduct 3/8 in (usually) to allow the panel to recess into the frame. To Receive 'A1,' use bearing #47713. Bearing is included with tool.
Overall Length2 15/16 in
Radius1 9/16 in
Shank1/2 in
TypeCove
Angle
