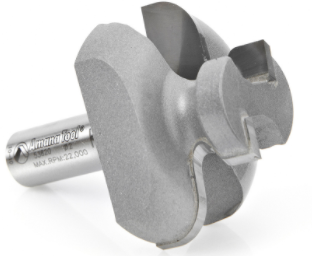

Item # 53820, Amana Tool Carbide-Tipped Door Edge Detail for Decor Door 3/8 x 1/8 Radius x 2 Inch Dia x 1/2 Shank
$111.19
Download as PDF
Thank you for shopping with us!
Amana Tool Carbide-Tipped Door Edge Detail for Decor Door 3/8 x 1/8 Radius x 2 Inch Dia x 1/2 Shank
Use these bits to shape the edges of cabinet doors. Style #53820 also eliminates the need for a pull to create a clean, uncluttered look.
Amana Tool Carbide-Tipped Door Edge Detail for Decor Door 3/8 x 1/8 Radius x 2 Inch Dia x 1/2 Shank
Use these bits to shape the edges of cabinet doors. Style #53820 also eliminates the need for a pull to create a clean, uncluttered look.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 in |
| Cut Height, Length, or Width | 1-3/16 in |
| Bearing(s) | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide |
| Diameter (D1) | 23/32 in |
| Diameter (D2) | 31/32 in |
| Flute | 2 |
| Overall Length | 2 1/2 in |
| Radius | 3/8 in |
| R1/Radius | 1/8 in |
| Shank | 1/2 in |
