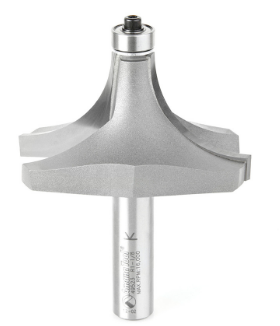

Item # 49523, Amana Tool Corner Rounding Carbide-Tipped 2-Flute w/Ball Bearing Guide


Download as PDF
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping

A basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as part of a complex one. Also known as a roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Warning: Maximum RPM = 16,000. Use in a table-mounted router—not for use in a handheld router!

Not guaranteed due to extreme diameter and radius. For best results, it is recommended to use a small radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result.
Cut Height /Length1 3/8 in
Diameter (D1)0.5 in
Flutes2 w/Bearing
ManufacturerAmana Tool
Overall Length3 1/4 in
Radius1 1/8 in
Shank1/2 in
