Item # 49352, Amana Tool Multi-Rabbet Five Different Rabbet Depths 1-3/8 Dia x 1 x 1/2 Inch Shank 4 Flute Router Bit
$97.89
Download as PDF
Thank you for shopping with us!

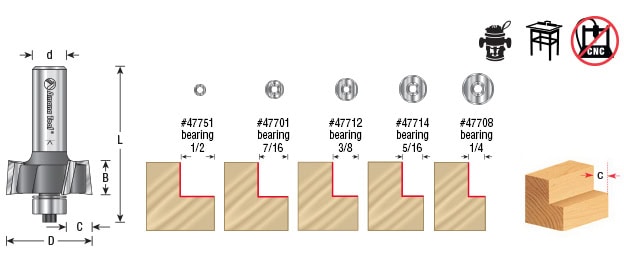

The Multi-Rabbet bit steps in 1/16" increments from a 1/4" cut width to 1/2", simply by switching ball-bearing guides. Five different bearings are provided. Depth of cut capacity of 1/2". Use in a handheld or table-mounted router.
The Multi-Rabbet bit steps in 1/16" increments from a 1/4" cut width to 1/2", simply by switching ball-bearing guides. Five different bearings are provided. Depth of cut capacity of 1/2". Use in a handheld or table-mounted router.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Cut Depth | 1/4, 5/16, 3/8, 7/16, 1/2 in Rabbet Depths |
| Diameter | 1 3/8 in |
| Cut Height, Length, or Width | 1 in |
| Bearing(s) | 47751, 47701, 47712, 47714, 47708 |
| Flute | 4 w/bearing |
| Overall Length | 2 15/16 in |
| Shank | 1/2 in |
