Item # 49350, Amana Tool Multi-Rabbet Six Different Rabbet Depths 1-3/8" Dia x 1/2" CH x 1/2" Shank
$58.70
Download as PDF
Thank you for shopping with us!

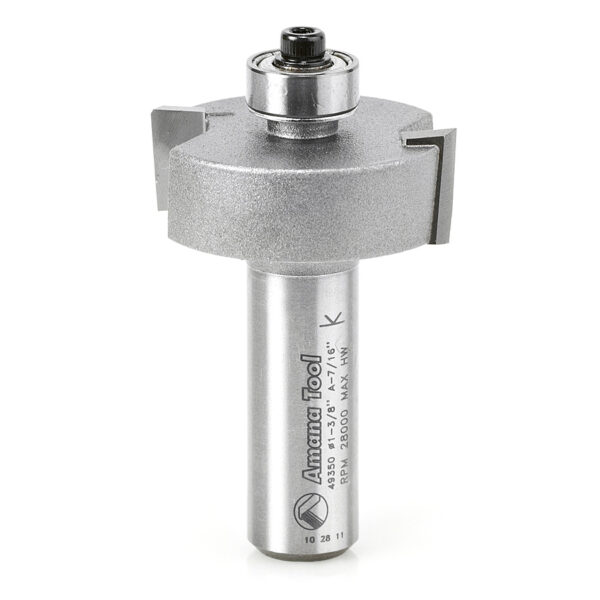

Amana Tool Multi-Rabbet Six Different Rabbet Depths 1-3/8" Dia x 1/2" CH x 1/2" Shank
Six Different Rabbet Depths!
The Multi-Rabbet bit steps in 1/16" increments from a 1/8" cut width to 1/2" , simply by switching ball bearing guides. Six different bearings are provided. Depth of cut capacity of 1/2" . Use in a handheld or table-mounted router.
Amana Tool Multi-Rabbet Six Different Rabbet Depths 1-3/8" Dia x 1/2" CH x 1/2" Shank
Six Different Rabbet Depths!
The Multi-Rabbet bit steps in 1/16" increments from a 1/8" cut width to 1/2" , simply by switching ball bearing guides. Six different bearings are provided. Depth of cut capacity of 1/2" . Use in a handheld or table-mounted router.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Cut Depth | 1/8, 1/4, 5/16, 3/8, 7/16, 1/2 in |
| Diameter | 1 3/8 in |
| Cut Height, Length, or Width | 1/2 in Rabbet Depth |
| Bearing(s) | 47702, 47706, 47718, 47720, 47719, 47743 |
| Flute | 2 w/Bearing |
| Overall Length | 2 3/8 in |
| Shank | 1/2 in |
