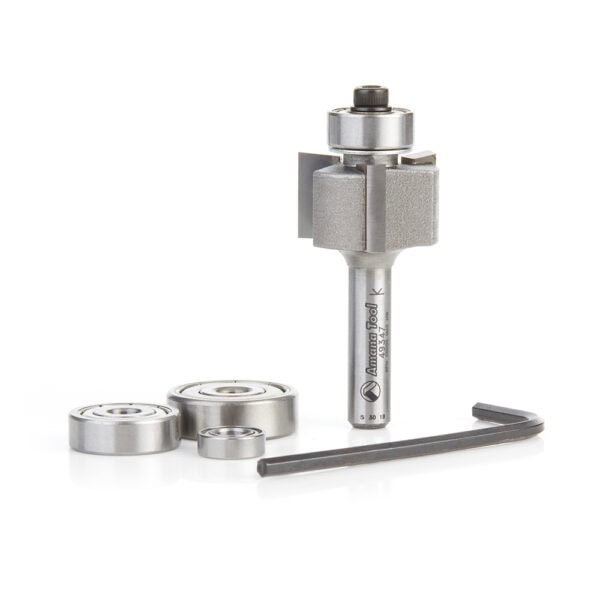

Item # 49347, Amana Tool Multi-Rabbet Four Different Rabbet Depths 7/8 Dia x 1/2 x 1/4 Inch Shank 3 Flute Router Bit
$68.52
Download as PDF
Thank you for shopping with us!

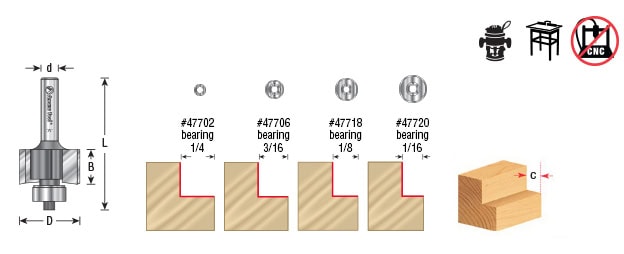

The Multi-Rabbet bit steps in 1/16" increments from a 1/16" cut width to 1/4", simply by switching ball-bearing guides. Four different bearings are provided. Depth of cut capacity of 1/4". Use in a handheld or table-mounted router.
The Multi-Rabbet bit steps in 1/16" increments from a 1/16" cut width to 1/4", simply by switching ball-bearing guides. Four different bearings are provided. Depth of cut capacity of 1/4". Use in a handheld or table-mounted router.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Cut Depth | 1/16, 1/8, 3/16, 1/4 in Rabbet Depths |
| Diameter | 7/8 in |
| Cut Height, Length, or Width | 1/2 in |
| Bearing(s) | 47702, 47706, 47718, 47720 |
| Flute | 3 w/bearing |
| Overall Length | 1 29/32 in |
| Shank | 1/4 in |
You may also like…
-
Item #47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide
$5.53
-
Item #47718, Amana Tool 3/16 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide
$8.54
-
Item #47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide
$6.64
-
Item #47720, Amana Tool Steel 3/16 ID X 3/4 OD X .280 Thick Ball Bearing Guide
$9.20
-

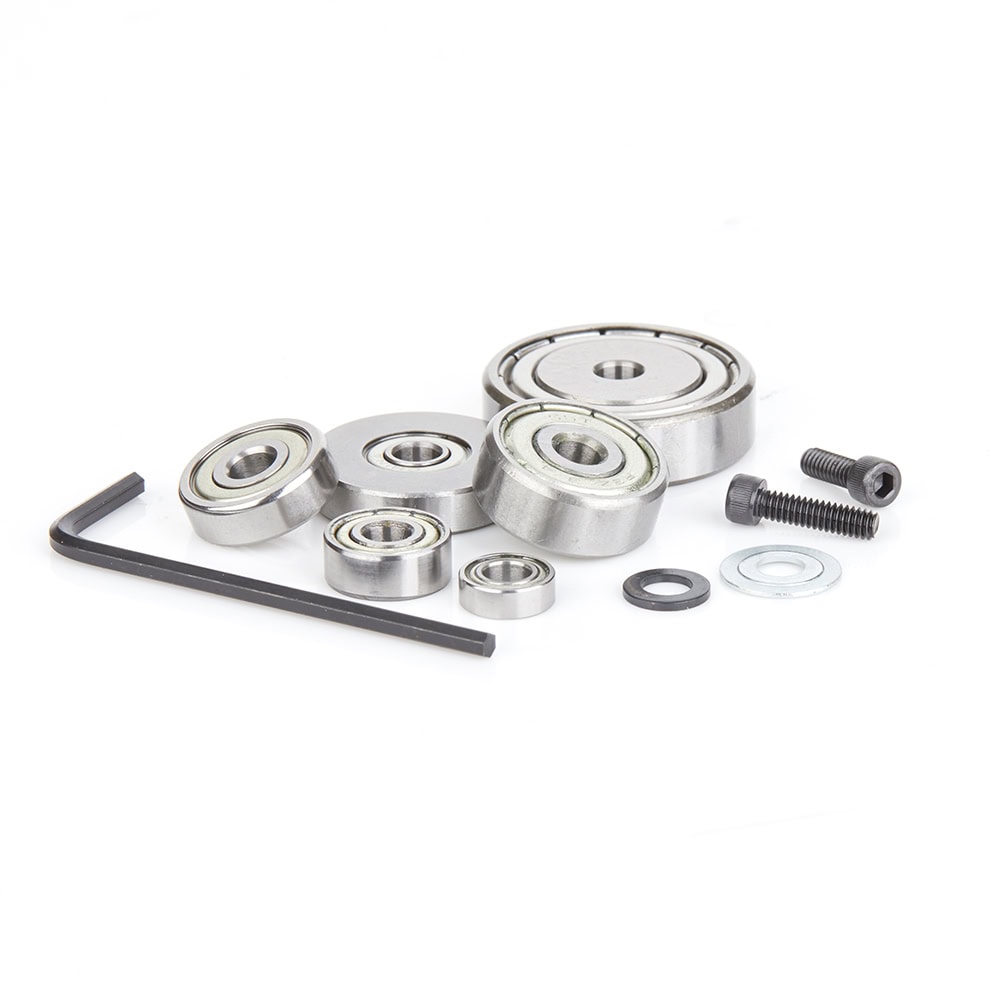

Item #6000, Amana Tool Complete Replacement Kit for Multi-Rabbet with Ball Bearing Guide 1/8, 1/4, 5/16, 3/8, 7/16, 1/2
