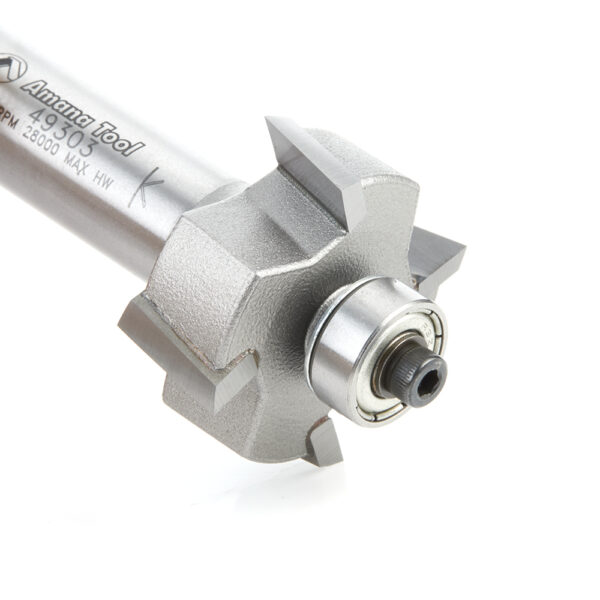

Item # 49303, Amana Tool Multi-Rabbet Four Different Rabbet Depths 1-1/4 Dia x 1/2 x 1/2 Inch Shank 4 Flute Up-Shear Router Bit
$77.88
Download as PDF
Thank you for shopping with us!

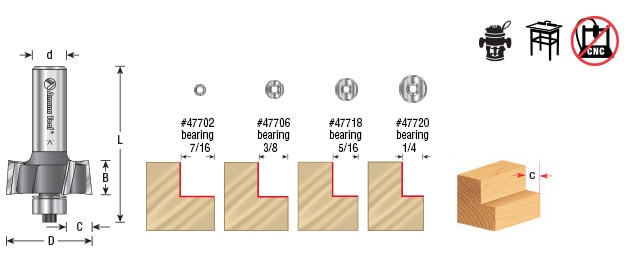

The Multi-Rabbet bit steps in 1/16" increments from a 7/16" cut width to 1/4" simply by switching ball-bearing guides. Four different bearings are provided. Depth of cut capacity of 1/4". Use in a handheld or table-mounted router.
The Multi-Rabbet bit steps in 1/16" increments from a 7/16" cut width to 1/4" simply by switching ball-bearing guides. Four different bearings are provided. Depth of cut capacity of 1/4". Use in a handheld or table-mounted router.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Cut Depth | 7/16, 3/8, 5/16, 1/4 in Rabbet Depths |
| Diameter | 1 1/4 in |
| Cut Height, Length, or Width | 1/2 in |
| Bearing(s) | 47702, 47706, 47718, 47720 |
| Flute | 4 w/bearing |
| Overall Length | 2 9/32 in |
| Shank | 1/2 in |
