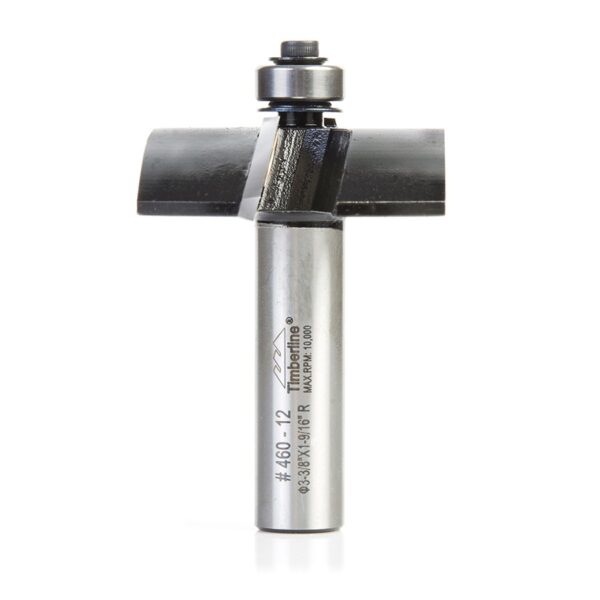

Item # 460-12, Amana Professional Quality Cove Raised Panel Router Bits
$80.01
Download as PDF
Thank you for shopping with us!
Create raised panels for cabinet doors, frame and panel furniture, and architectural paneling with a raised panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use this bit for panels with curved edges. Multiple passes recommended.
1/2" Shank
2 Flute with ball bearing guide
Professional Quality Carbide-Tipped
*Use in a table-mounted router. Not for use in a handheld router!
Create raised panels for cabinet doors, frame and panel furniture, and architectural paneling with a raised panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use this bit for panels with curved edges. Multiple passes recommended.
1/2" Shank
2 Flute with ball bearing guide
Professional Quality Carbide-Tipped
*Use in a table-mounted router. Not for use in a handheld router!

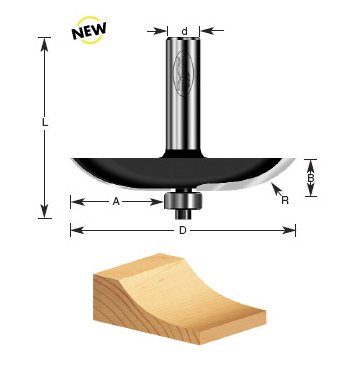

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3 3/8 in |
| Bearing(s) | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide |
| Cut Depth | 1 7/16 in |
| Cut Height, Length, or Width | 1/2 in |
| Flute | 2 |
| Overall Length | 2 3/8 in |
| Radius | 1 9/16 in |
| RPM | 12,000 |
| Shank | 1/2 in |
