Item # 304010, Amana Tool Chucks for 10MM Shank In-Line Boring Machines
Download as PDF
Thank you for shopping with us!
Application: Replace worn or damaged chucks. Meets or exceeds O.E.M. specifications.
Due to many different styles, please order carefully.
Note: Right hand tools rotate clockwise; left hand tools rotate counter-clockwise.
1.5mm thread pitch.
Set screw #67097
Not to be used in portable drills or handheld routers.

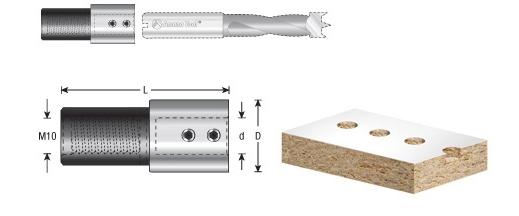

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Length | Thread Length 11mm |
| Note | Due to many different styles, please order carefully. Right hand tools rotate clockwise; left hand tools rotate counter-clockwise. |
| Opening | 8 mm |
| Overall Length | 48mm |
| Shank | 10 mm |
| Usage/System | Bilek Machines |
| Angle | 20.98 deg |
