Item # 20204, Amana Tool Carbide-Tipped Adjustable 29/64 - 5/8 Dia x 15/32 Cut Depth x 1/8 - 9/32 Inch Shank
$34.13
Download as PDF
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.
Accepts drills from 3/32" through 9/32" (wood screw sizes #2 through #18). 20204 includes 1/8" diameter drill
Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Replacement Allen screws (2 required) #67090
Replacement 3mm hex key #5004 (included)
Drill Bits.
Accepts drills from 3/32" through 9/32" (wood screw sizes #2 through #18). 20204 includes 1/8" diameter drill
Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Replacement Allen screws (2 required) #67090
Replacement 3mm hex key #5004 (included)
Drill Bits.

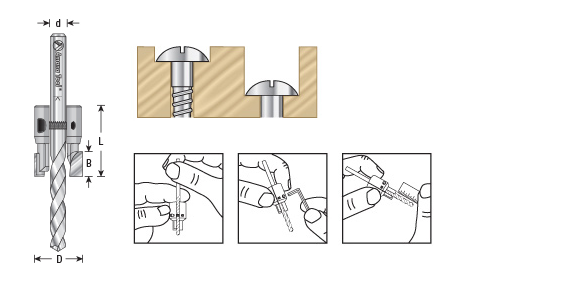

| SPECIFICATIONS | |
| Diameter | 29/64 to 5/8 in |
|---|---|
| Cut Height, Length, or Width | 15/32 in |
| Note | Includes 1/8" diameter drill. |
| Overall Length | 1 3/32 in |
| Shank | 1/8 to 9/32 |
