Item # 145301, Lamello Bisco P-14 Aligning Elements, 80 pieces
$50.00
1 in stock
Download as PDF
Thank you for shopping with us!

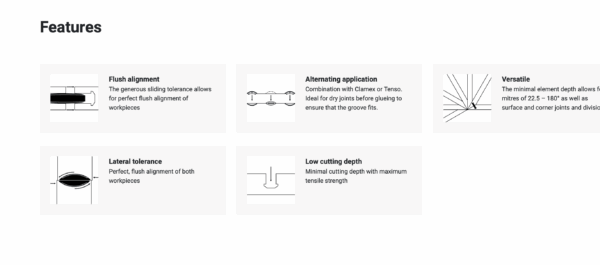

The Bisco P is a plastic element. The aligning element fits into the 7 mm wide P-System groove. However, it is not anchored with positive locking like the Clamex P, but instead clamps in the groove due to its surface structure. It can be used like a wooden biscuit with PVA glue as a fixed joint.
The Bisco P is used in combination with the Clamex P only when every second connector needs to apply clamping force and an aligning element in between is sufficient for joint flushness as an invisible and cost-effective alternative.
Another application is the use for test connections before a workpiece is joined with a Tenso P and adhesive. The clamping force of the Tenso P is very powerful and, depending on the angle of the workpieces, disassembly may require a lot of force. It is therefore advisable to check the precision of the machining with a Bisco P. The Biscos are then simply removed from the grooves, replaced by Tenso P, adhesive is then applied, and the workpieces are joined together.

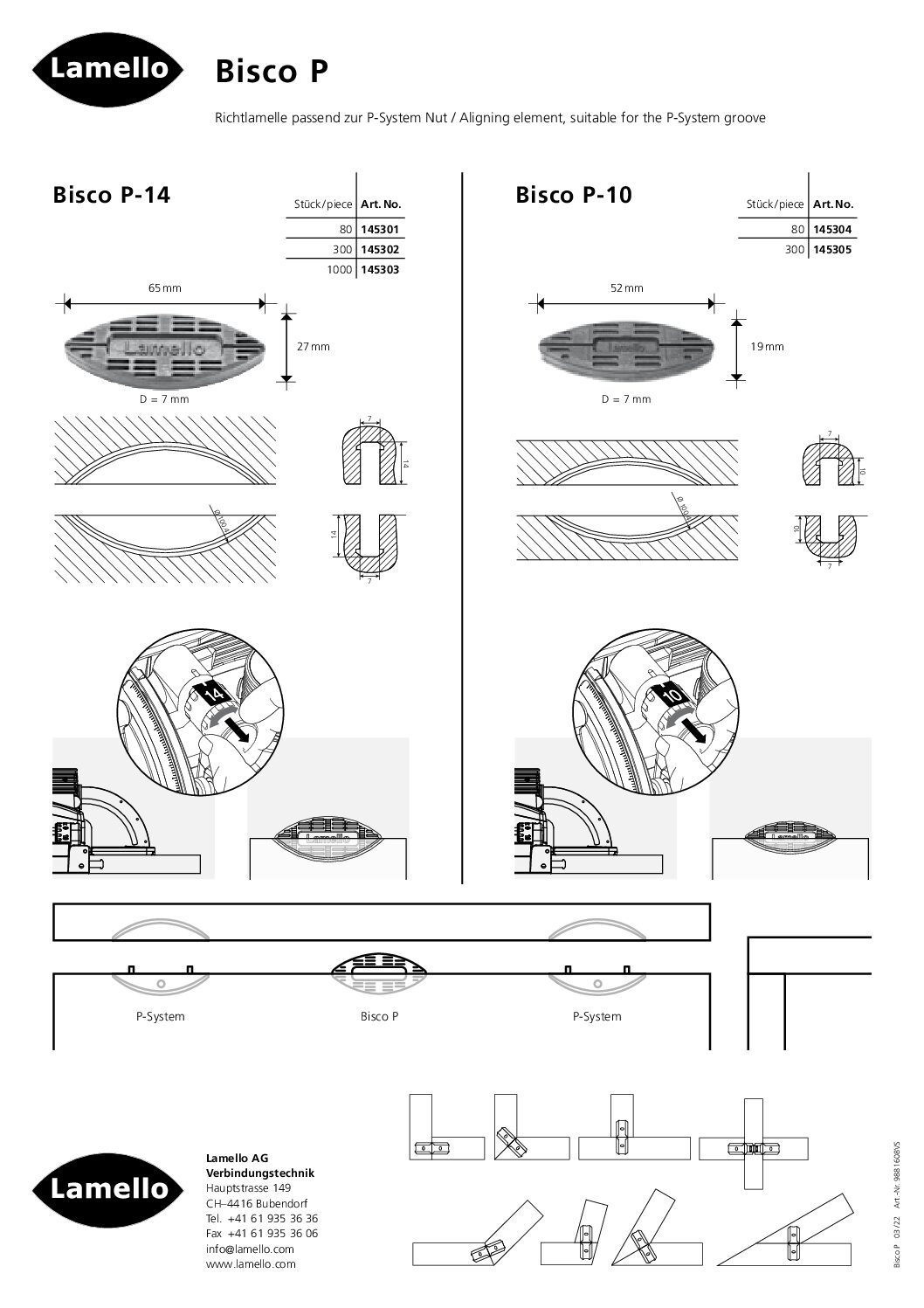

The Bisco P-14 is used in combination with the Clamex P-14 or Tenso P-14, the Bisco P-10 with connectors of size P-10.
Applications:
In combination with the Clamex P or Tenso P in furniture construction
Applications similar to the Lamello original wooden biscuit
Size P10: butt joints from a material thickness of 12 mm, mitre connections from a material thickness of 18 mm
Size P14: butt joints from a material thickness of 15 mm, mitre connections from a material thickness of 18 mm
The Bisco P is a plastic element. The aligning element fits into the 7 mm wide P-System groove. However, it is not anchored with positive locking like the Clamex P, but instead clamps in the groove due to its surface structure. It can be used like a wooden biscuit with PVA glue as a fixed joint.
The Bisco P is used in combination with the Clamex P only when every second connector needs to apply clamping force and an aligning element in between is sufficient for joint flushness as an invisible and cost-effective alternative.
Another application is the use for test connections before a workpiece is joined with a Tenso P and adhesive. The clamping force of the Tenso P is very powerful and, depending on the angle of the workpieces, disassembly may require a lot of force. It is therefore advisable to check the precision of the machining with a Bisco P. The Biscos are then simply removed from the grooves, replaced by Tenso P, adhesive is then applied, and the workpieces are joined together.
The Bisco P-14 is used in combination with the Clamex P-14 or Tenso P-14, the Bisco P-10 with connectors of size P-10.
Applications:
In combination with the Clamex P or Tenso P in furniture construction
Applications similar to the Lamello original wooden biscuit
Size P10: butt joints from a material thickness of 12 mm, mitre connections from a material thickness of 18 mm
Size P14: butt joints from a material thickness of 15 mm, mitre connections from a material thickness of 18 mm

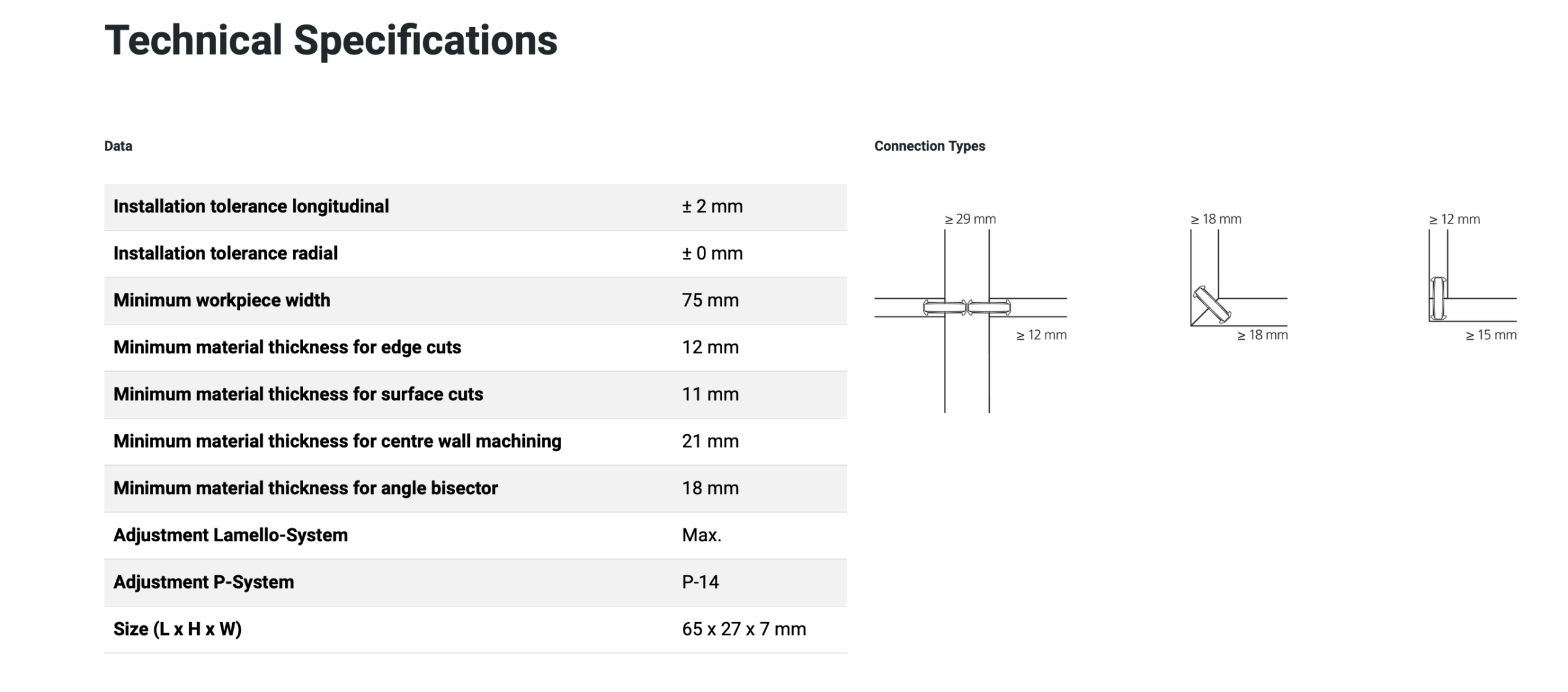

| SPECIFICATIONS | |
| Manufacturer | Lamello Tools |
|---|---|
| Part Descp. | Bisco P-14 Aligning Element |
| Length | 65mm |
| Width | 7mm |
| Height | 27mm |
| Thickness | -- |
| Diameter | -- |
| Size | -- |
| No. of Pieces | -- |
| Teeth | -- |
