Item # 120-12, Amana Professional Quality Flush Trim Plunge Router Bits
$31.84
Download as PDF
Thank you for shopping with us!

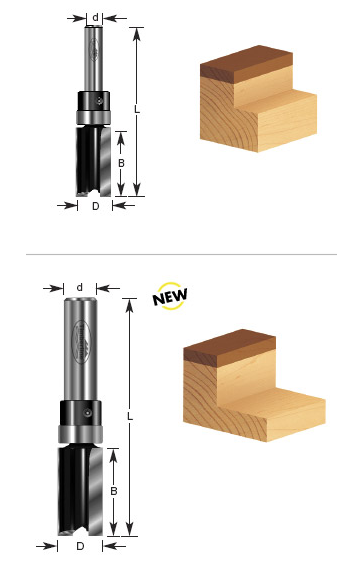

This bit is essentially a plunge-cutting straight with a shank-mounted ball bearing pilot. It is a versatile bit, useful for template/pattern routing of parts, joints, and internal cuts, and can be used in handheld and table-mounted routers. The template is attached to the work-piece, and the pilot bearing rides along its edge as the cutting edges rout the work-piece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
1/4" & 1/2" Shank
2 Flute
Upper Ball Bearing Guide
Professional Quality Carbide-Tipped
This bit is essentially a plunge-cutting straight with a shank-mounted ball bearing pilot. It is a versatile bit, useful for template/pattern routing of parts, joints, and internal cuts, and can be used in handheld and table-mounted routers. The template is attached to the work-piece, and the pilot bearing rides along its edge as the cutting edges rout the work-piece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
1/4" & 1/2" Shank
2 Flute
Upper Ball Bearing Guide
Professional Quality Carbide-Tipped
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1/2 in |
| Cut Height, Length, or Width | 1 1/4 in |
| Bearing(s) | 47701 Bearing; 47724 Retaining Collar |
| Flute | 2 |
| Overall Length | 2 3/4 in |
| Shank | 1/4 in |
