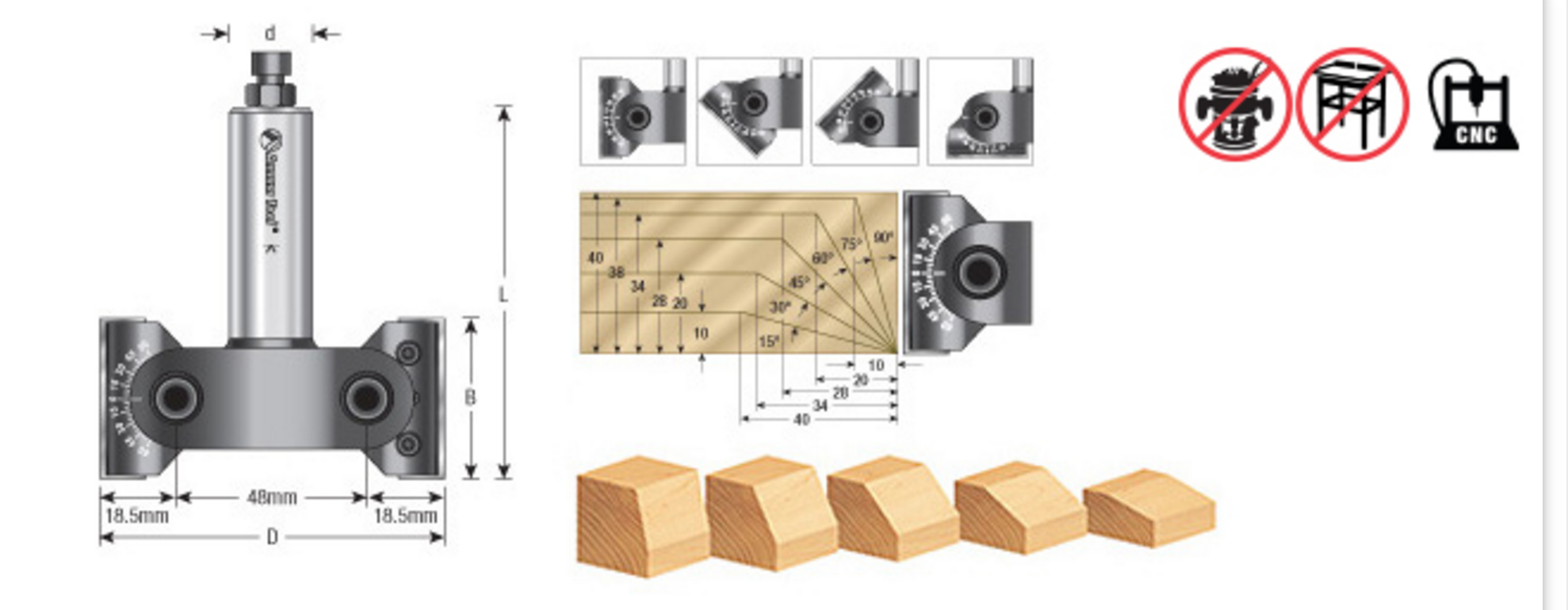

Amana Tool CNC Insert Carbide Adjustable ChamferEdge of Arlington offers free shipping in the United States when you choose flat rate shipping Insert router bit complete with two cutting flutes. Suitable for producing chamfer cuts at various angles in softwood, hardwood, and man-made boards. Cutting angle can be adjusted in 7.5° steps by using a notched scale. Refer to images. Fine adjustment of 1° is also possible. For use on routers and machining centers with CNC control. LH=Left Hand Rotation Bit tolerance is +/- 0.5° Excellent for cutting:
|
Download as PDF| Item # | Diameter | Cut Height/Length | Shank | RPM | Overall Length | Note | Manufacturer | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|
| RC-2370 | 3 3/8 in | 1 1/2 in | 3/4 in | 12,000 | 4 in | Replacement screws use #67183. | Amana Tool | $484.92 | Add to cart | |
| RC-2370-LH | 3 3/8 in | 1 1/2 in | 3/4 in | 12,000 | 4 in | Replacement screws use #67183. Left Hand Rotation | Amana Tool | $484.92 | Add to cart |
