Amana Tool Ditec™ Conical Type Scoring Sets
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

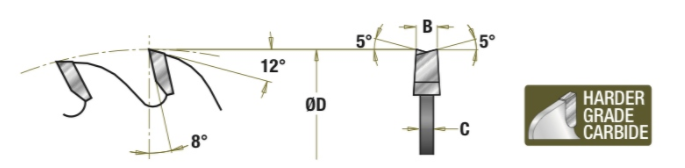

Used on panel saws with separate scoring units for chip-free cuts on both sides of the material. With conical type scoring blades, the kerf width changes with depth of penetration. Used in combination with our industrial saw blades ‘7’ series only (#714721), etc). Also used in combination with the Ditec™ series panel saw main blades. Kerf range should match the main blade.
√ Exclusive DITEC™ Carbide Tips
Instructions for grinding: For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate. Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade. Since the carbide in the DITEC™ is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC™ carbide.
Warning: Before use, read saw blade safety guidelines in Amana’s catalog.
|Item #||Diameter||Bore||Grind||Kerf||Machine||Plate||Teeth||Manufacturer||Price||Add To Cart|
|DT120T20||120 mm||20mm mm||Conical||3.2mm to 4.2mm||Altendorf™||2.2 mm||24||Amana Tool||$169.13||Add to cart|
|DT120T24||120 mm||20mm mm||Conical||4.4mm to 5.4mm||Altendorf™, Martin, SCMI™||2.8 mm||24||Amana Tool||$162.38||Add to cart|
