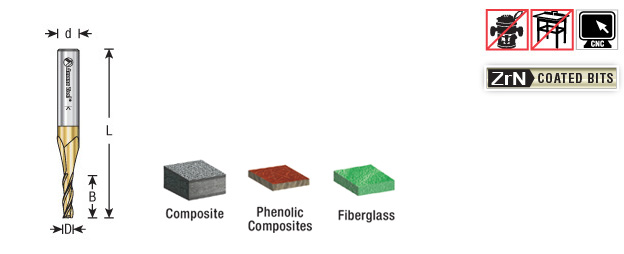

Amana Tool ZrN Coated CNC Composite, Fiberglass & Phenolic Cutting Solid Carbide Spiral Router Bits

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

Amana’s Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-flute, and ZrN coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator. Using these special multi-flute edge tools featuring Zirconium Nitride Ceramic (ZrN) ceramic coating addresses these challenges with a winning geometry combination.

Excellent for cutting:

  • Composite
  • Fiberglass
  • Fiberglass PCB Board
  • Phenolics
  • HDPE
  • Aluminum
  • Plastic
  • Corian
  • Poly (methyl methacrylate) (PMMA)
  • Acrylic Stone
  • Coroplast®*
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Lexan™
    *A soft plastic cardboard made with super soft, super flexible PVC.

Benefits of ZrN Coating

  • Creates a harder and tougher cutting edge, allows for a prolonged cutting edge life, and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction & heat buildup
  • High resistance to wear


Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.

Item # DiameterCut Height/LengthFlute GeometryFluteOverall LengthShank Price Add To Cart
Compare 46090 1/8 in1/2 inUpcut32 in1/4 in $34.91 Add to cart
Compare 46040 1/8 in1/2 inUpcut22 in1/4 in $34.91 Add to cart
Compare 46045 3/8 in7/8 inUpcut22 1/2 in3/8 in $54.19 Add to cart
Compare 46097 1/4 in3/4 inDowncut32 1/2 in1/4 in $32.06 Add to cart
Compare 46047 1/2 in3/4 inUpcut23 in1/2 in $93.30 Add to cart
Compare 46094 Upcut3 $32.06 Add to cart
Compare 46093 5 mmUpcut335 mm $34.91 Add to cart
Compare 46091 Upcut3 $28.01 Add to cart
Compare 46042 Upcut2 $35.85 Add to cart
Compare 46092 Upcut3 $36.08 Add to cart
Compare 46043 Upcut2 $34.91 Add to cart
