Amana Tool CNC Compression Spiral Flute, 1- 2- & 3-Flute For MDF/LaminateEdge of Arlington offers free shipping in the United States when you choose flat rate shipping. Special carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated materials. 3-Flute design provides an extra-smooth finish. Excellent for cutting: laminate, laminate plywood, melamine, melamine particle board, MDF/HDF, oriented strand board (OSB), veneered plywood, softwood, hardwood. For part #46180 Optional 1/4″ diameter sleeve/adapter #47632
|
Download as PDF| Item # | Diameter | B1 | Cut Height/Length | Flute | Overall Length | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|
| 46137 | 1/8 in | 5/32 in | 3/8 in | 1 | 2 1/2 in | 1/8 in | $43.88 | Add to cart | |
| 46139 | 1/8 in | 5/32 in | 3/8 in | 1 | 2 1/2 in | 1/4 in | $54.79 | Add to cart | |

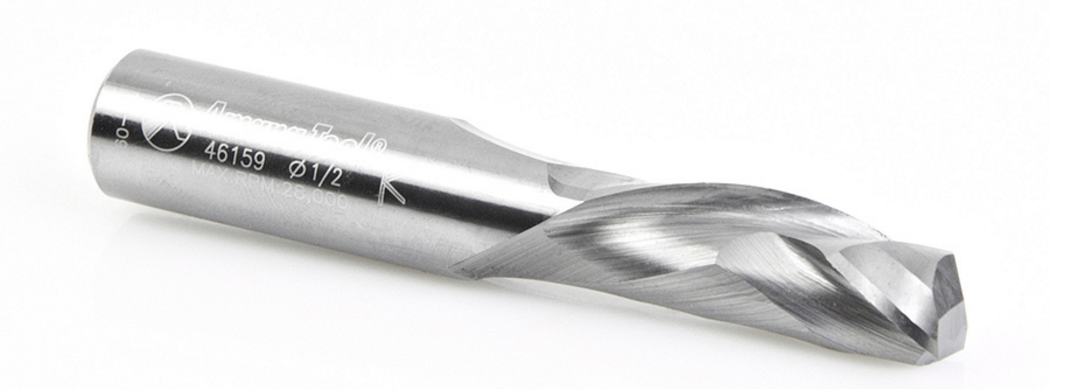

| 46159 | 1/2 in | 7/16 in | 1 1/4 in | 1 | 3 in | 1/2 in | $111.94 | Add to cart | |

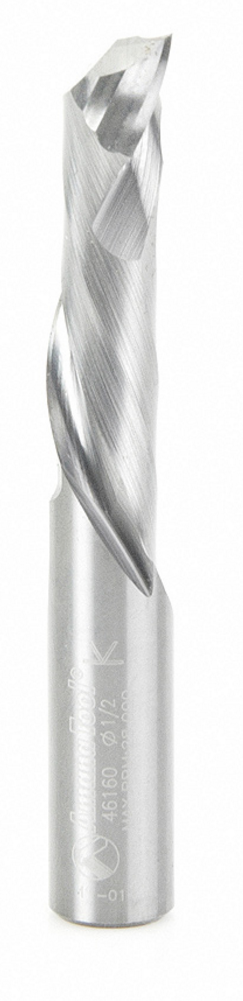

| 46160 | 1/2 in | 7/16 in | 1 5/8 in | 1 | 3 1/2 in | 1/2 in | $103.16 | Add to cart | |

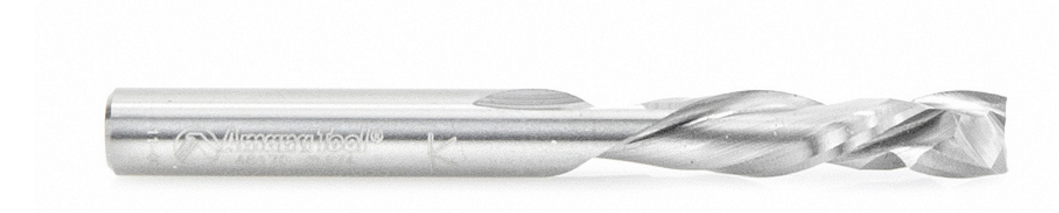

| 46170 | 1/4 in | 7mm | 7/8 in | 2 | 2 1/2 in | 1/4 in | $59.93 | Add to cart | |

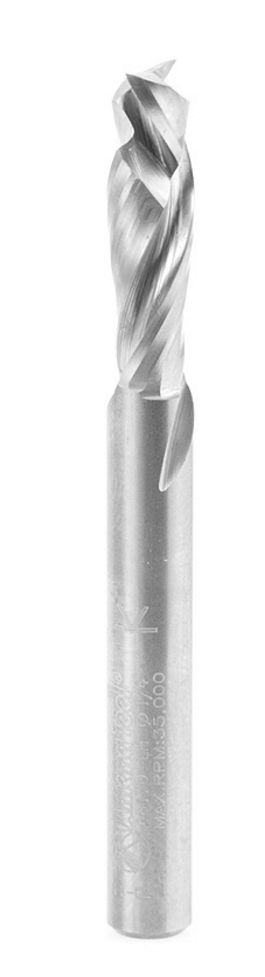

| 46170-LH | 1/4 in | 7mm | 7/8 in | 2 | 2 1/2 in | 1/4 in | $93.30 | Add to cart | |
| 46178 | 3/8 in | 9mm | 1 1/8 in | 2 | 3 in | 1/2 in | $119.33 | Add to cart | |
| 46186 | 1/2 in | 10mm | 1 1/8 in | 2 | 3 in | 1/2 in | $93.30 | Add to cart | |

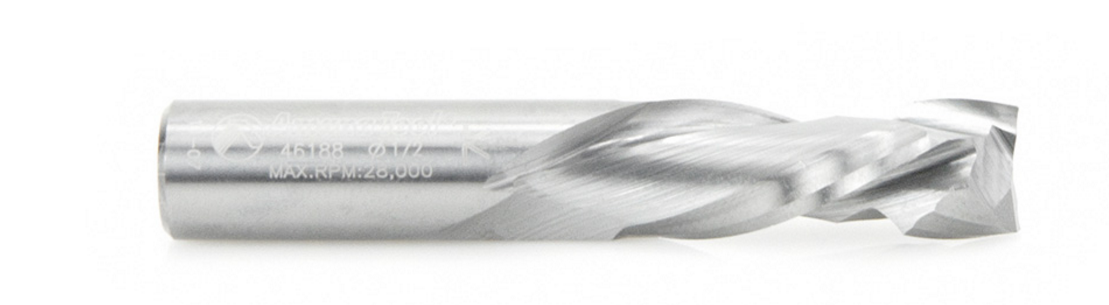

| 46188 | 1/2 in | 11mm | 1 1/4 in | 2 | 3 in | 1/2 in | $86.59 | Add to cart | |

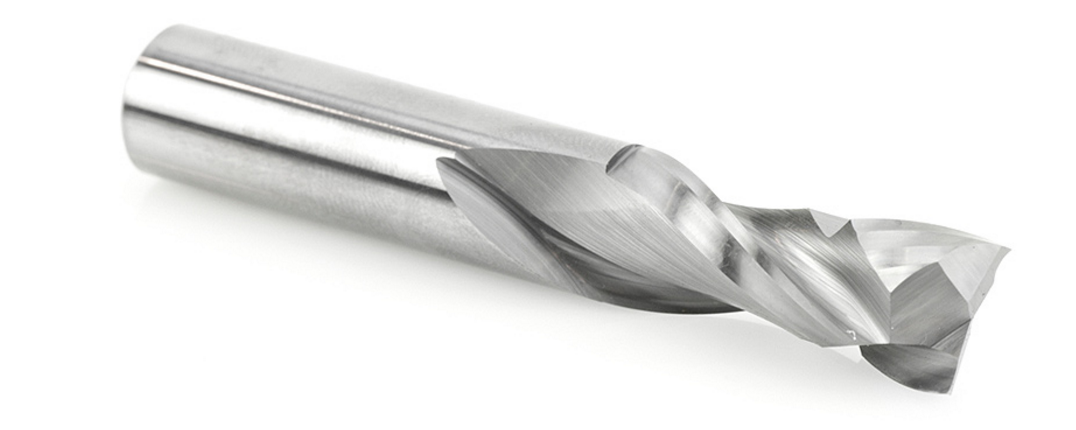

| 46188-LH | 1/2 in | 11mm | 1 1/4 in | 2 | 3 in | 1/2 in | $93.30 | Add to cart | |
| 46189 | 1/2 in | 12mm | 1 1/2 in | 2 | 3 1/2 in | 1/2 in | $117.56 | Add to cart | |
| 46190 | 1/2 in | 13mm | 1 5/8 in | 2 | 3 1/2 in | 1/2 in | $104.10 | Add to cart | |
| 46190-LH | 1/2 in | 13mm | 1 5/8 in | 2 | 3 1/2 in | 1/2 in | $130.61 | Add to cart | |
| 46010 | 3/8 in | 9mm | 1 1/8 in | 3 | 3 in | 3/8 in | $87.94 | Add to cart | |
| 46140 | 1 | 2 1/2 in | 1/4 in | $54.79 | Add to cart | ||||

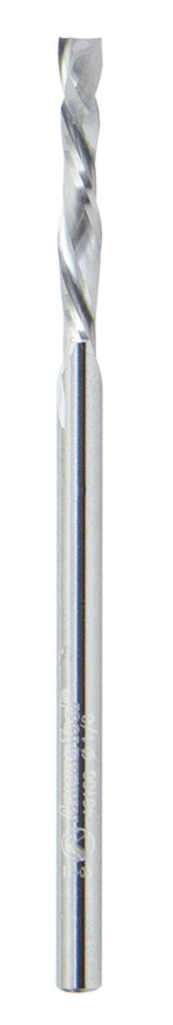

| 46180 | 2 | 2 1/2 in | 1/8 in | $53.66 | Add to cart | ||||
| 46181 | 2 | 2 1/2 in | 3/16 in | $71.03 | Add to cart | ||||

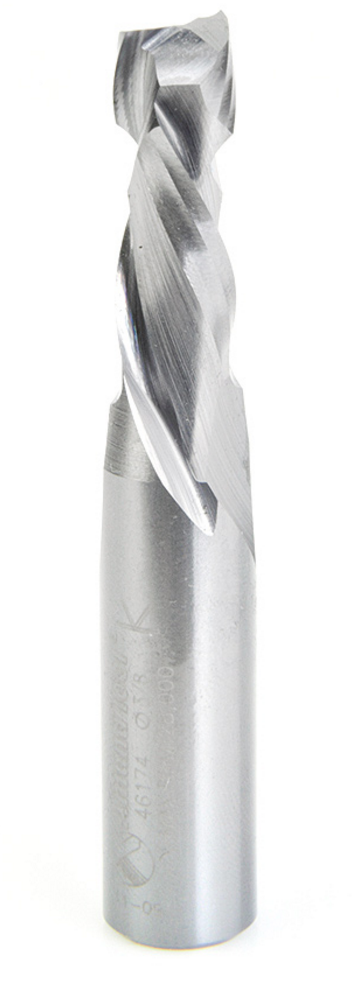

| 46174 | 2 | 3 in | 1/2 in | $114.26 | Add to cart | ||||
| 46172 | 2 | 3 in | 3/8 in | $74.66 | Add to cart | ||||
| 46182 | 2 | 3 in | 1/2 in | $93.30 | Add to cart | ||||

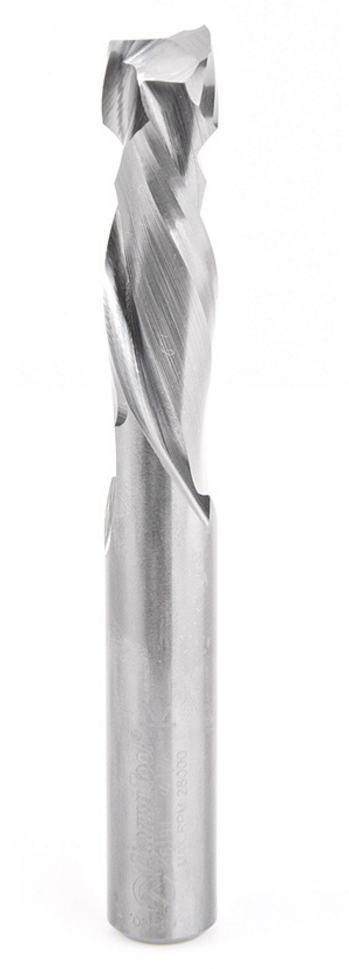

| 46191 | 2 | 4 1/16 in | 1/2 in | $139.95 | Add to cart | ||||
| 46012 | 3 | 3 in | 1/2 in | $93.30 | Add to cart | ||||

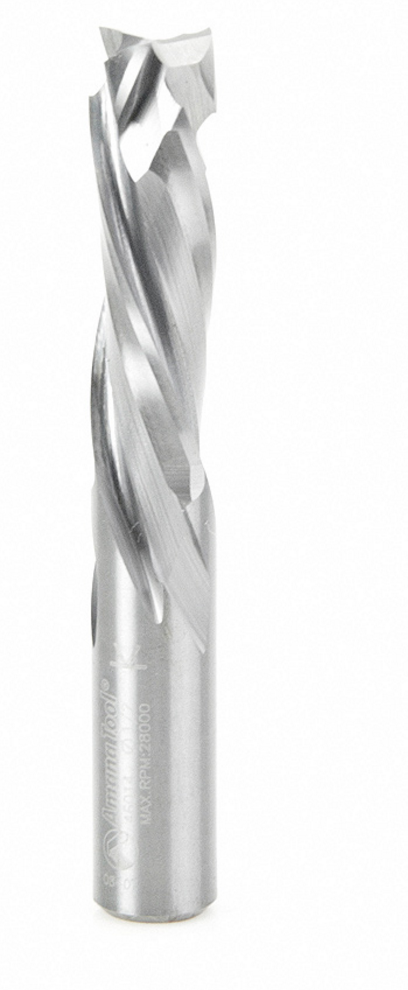

| 46014 | 3 | 3 1/2 in | 1/2 in | $111.94 | Add to cart | ||||
| 46183 | 2 | 2 1/2 in | 1/4 in | $63.71 | Add to cart | ||||
| 46171 | 2 | 3 in | 3/8 in | $73.76 | Add to cart | ||||
| 46173 | 2 | 3 in | 3/8 in | $84.00 | Add to cart | ||||
| 46011 | 3 | 3 in | 3/8 in | $80.25 | Add to cart | ||||
| 46013 | 3 | 3 in | 1/2 in | $88.28 | Add to cart |
