Amana Tool CNC PCD Compression Up/Down Shear Diamond-Tipped Router Bits

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping

Diamond is the hardest naturally-occurring material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.

If you’re looking for the ultimate in tooling, you’ve found it. Our diamond router bits will cut a wide variety of tough, abrasive materials. The cutting edge lasts up to 100 times longer than carbide; in the long-run, PCD is the most economical choice. Diamond-tipped compression with carbide plunge point router bits for grooving, jointing & rabbeting in composites, MDF (both raw or with melamine), laminate, plastic, wood, veneers, and more. Up/Down-shear for double-sided material.

Excellent for Cutting:

  • Fiberglass Reinforced Composites
  • Lightweight composites
  • Custom composite materials
  • Fiber-reinforced urethane
  • Fiber-reinforced structural foam floors
  • And More . . . .

Benefits of Diamond Technology

  • Improved cycle times by enabling high material removal rates
  • Faster speeds and feeds compared to conventional cutting tools
  • Improved workpiece quality with tight dimensional control
  • Optimized machine tool efficiency by increasing production capacity
  • Consistently good component surface finish
  • Can be reground up to 5 to 7 times
  • Wear rate is much less than the carbide-tipped tools
Item # DiameterFlute GeometryFluteLengthOverall LengthRotationRPMShankSpecs-Misc Price Add To Cart

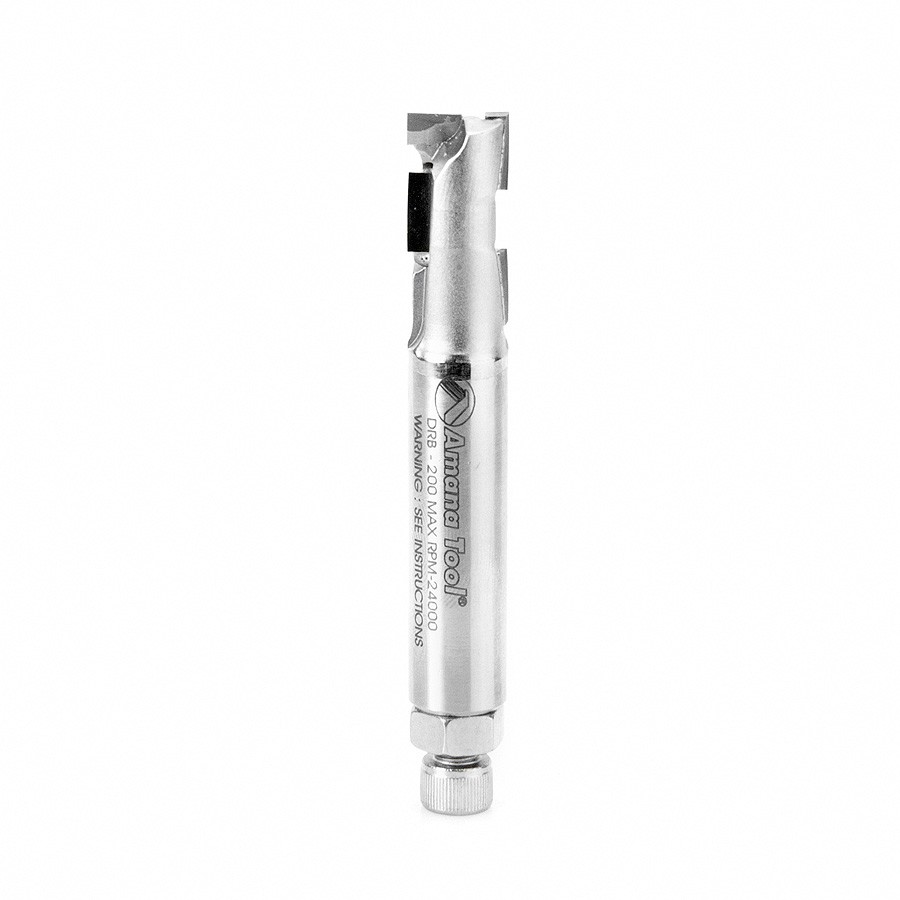

Compare DRB-200 1/2 inUpcut/Downcut1 3/8" Shank Length2 3/4 inRight300001/2 inCompression with carbide plunge point $174.74 Add to cart

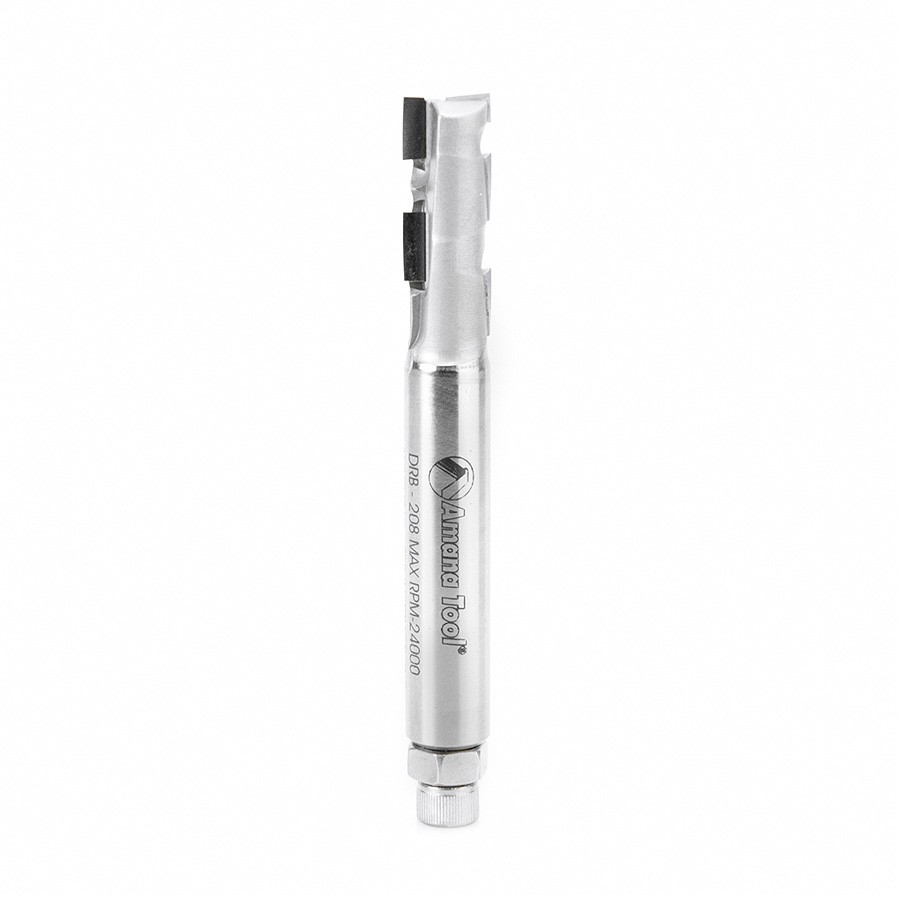

Compare DRB-208 1/2 inUpcut/Downcut1 3/4" Shank Length3 3/4 inRight300001/2 inCompression with carbide plunge point $180.50 Add to cart
Compare DRB-212 5/8 inUpcut/Downcut1 3/8" Shank Length2 7/8 inRight270001/2 inCompression with carbide plunge point $193.77 Add to cart
Compare DRB-224 3/4 inUpcut/Downcut2" Shank Length3 3/4 inRight24000.750 inCompression with carbide plunge point $226.08 Add to cart

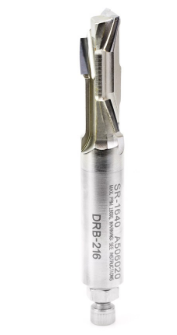

Compare DRB-216 5/8 inUpcut/Downcut1 3/4" Shank Length4 inRight27000.625 inCompression with carbide plunge point $215.28 Add to cart
