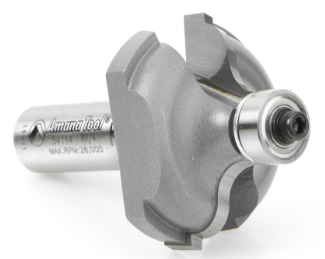

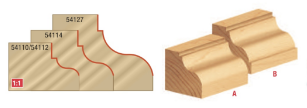

Amana Tool Ogee Fillet Carbide-Tipped 2-Flute w/Ball Bearing GuideEdge of Arlington offers free shipping in the United States when you choose flat rate shipping This ogee pattern has a step at the end of the concave portion of the curve. Using the optional 3/8″ bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router. Refer to images: A – Standard 1/2″ bearing #47706 (included); B – Optional 3/8″ bearing #47702 (order separately).
|
Download as PDF| Item # | Diameter | Cut Height/Length | Flute | Overall Length | Radius | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|
| 54110 | 1 3/8 in | 1/2 in | 2 w/Bearing | 2 1/16 in | 5/32 in | 1/4 in | $69.68 | Add to cart | |
| 54112 | 1 3/8 in | 1/2 in | 2 w/Bearing | 2 1/2 in | 5/32 in | 1/2 in | $69.45 | Add to cart | |
| 54114 | 1 5/8 in | 3/4 in | 2 w/Bearing | 2 5/8 in | 1/4 in | 1/2 in | $79.31 | Add to cart | |
| 54127 | 2 1/4 in | 15/16 in | 2 w/Bearing | 2 7/8 in | 3/8 in | 1/2 in | $119.59 | Add to cart |
