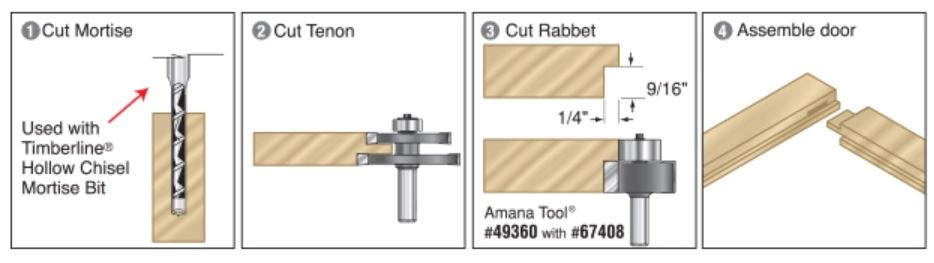

Amana Tool Offset Mortise-and-Tenon for Mission Style Glass DoorThank you for shopping with us! 3/4″ to 1/18″ Material The strongest construction method for making doors is the mortise-and-tenon joint. These new bits allow you to make tenons with offset shoulders. This makes it easy to construct offset mortise-and-tenon joints for Mission Style glass doors. |

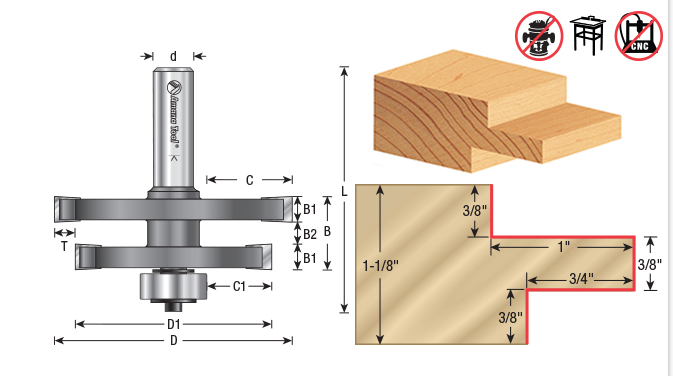

Download as PDF| Item # | Images | Manufacturer | Bearing(s) | Diameter | Cut Height, Length, or Width | Diameter (D1) | Replacement Parts | Flute | Overall Length | Shank | Usage/System | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53632 |
0
|
Amana Tool | 47708 | 2 7/8 mm | 1 1/8 in | 2 3/8 in | Screw #67090, Key #5004 | 2 | 2 5/8 in | 1/2 in | Use Mortise 609-120 | N/A | Add to cart |
