Item # LI16MAB3, Freud Adjustable Scoring Blades (for sliding table saws)

$106.34

Download as PDF
Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

Freud is one of the few manufacturers of woodworking tools in the world that produces its own Micrograin Carbide for each tool application.

ATB tooth 5° with positive cutting angle. Scoring sawblades for cutting coated panels on sizing machines. Thickness adjustment controlled by the machines, no spacers required. Adjustable kerf.

Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.

Machines: Horizontal panel sizing machines that do not allow the adjustment of the scoring depth. Max scoring depth 2mm.
Features: ATB tooth 5° with positive cutting angle.
Material: Bilaminated chipboard or MDF.

Ideal For: To score the coating on bilaminated panels.

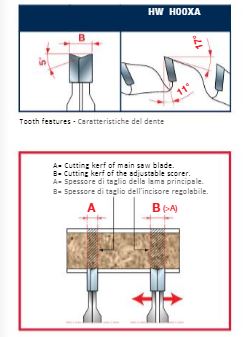

 Edge of Arlington Freud saw blade diagram
To peruse more comprehensive information on Freud® Tools Industrial Circular Saws, click on the link to Industrial Saw Blades Catalog.
SPECIFICATIONS
Diameter120 mm
Arbor22 mm
GrindSplit Score
Hook Angle11 deg
Kerf2.8 mm
Plate3.6 mm
Teeth12+12
MachineAltendorf, Martin, Mrozek
ManufacturerFreud Tools
