Item # HG220T420, Amana Tool Carbide-Tipped Hollow Ground 220mm Dia x 42T HG, -6 Deg, 30mm Bore
$141.53
Download as PDF
Thank you for shopping with us!

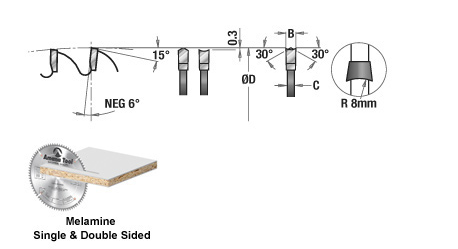

The specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that's ground to a concave profile, produces crisp clean cuts. The grind is commonly used in vertical panel saws, such as those made by Striebig® and Holz-Her®. The negative hook angle is particularly suitable for vertical panel saws.
Note: P.H. denotes pin-hole configuration, if applicable. Example: 2/10/60 = 2 @ 10mm dia on 60mm circle.
Warning: Before use, read saw blade safety guidelines in Amana's catalog.
The specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that's ground to a concave profile, produces crisp clean cuts. The grind is commonly used in vertical panel saws, such as those made by Striebig® and Holz-Her®. The negative hook angle is particularly suitable for vertical panel saws.
Note: P.H. denotes pin-hole configuration, if applicable. Example: 2/10/60 = 2 @ 10mm dia on 60mm circle.
Warning: Before use, read saw blade safety guidelines in Amana's catalog.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 220mm |
| Bore | 30mm |
| Grind | Hollow Ground (HG) |
| Kerf | 0.126 in |
| Machine | Holz-Her |
| Pinholes | 2/7/42 |
| Plate | 0.126 in |
| Teeth | 42 |
| Hook Angle | 6 deg negative hook |
