Item # 818-206, Mastercut 3 Flute Mortise Compression

$129.71

Download as PDF

Material Finish-Top: Excellent
Material Finish-Bottom: Excellent

Compression routers are best used when both top and bottom finish are important. They’re best used with material that has laminate on both the top and bottom. Chips flow in a sideways direction.


Endmill Points are most often found on 3 and 4 flute routers. They’re good for achieving a smooth finish on a flat bottom surface, and are commonly used in the plastic routing industry.

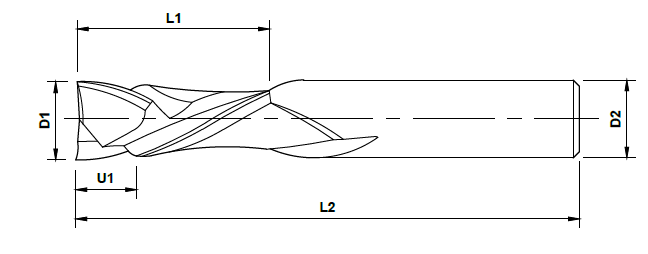

SPECIFICATIONS
Diameter1/2 in
Cut Height/Length1 3/8 in
End Pt TypeEndmill
Flute GeometryMortise
Flute3
Helix Angle30 deg
Mortise0.2
Overall Length3 1/2 in
Shank1/2 in
ManufacturerMastercut
