Item # 806-004, Mastercut 2 Flute O Flute Upcut Slow Spiral (Soft & Hard Plastics)


Download as PDF

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping

Material Finish-Top: Poor
Material Finish-Bottom: Excellent

Spiral flute router bits should only be used in automatic feed operations. They're good for use on all materials.

Upcut routers are used when a good bottom finish is desired on the material. Chips flow in an upward direction.

2 flute routers work well with harder materials, providing an excellent finish to the material.

Endmill Points are most often found on 3 and 4 flute routers. They’re good for achieving a smooth finish on a flat bottom surface, and are commonly used in the plastic routing industry.

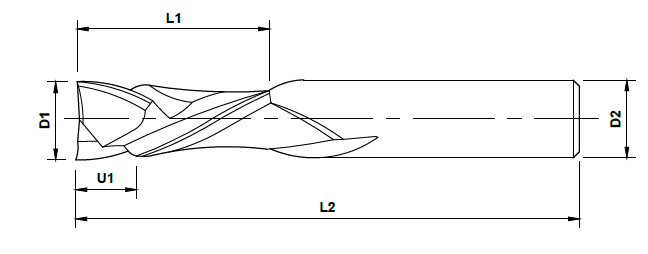

Cut Height/Length3/4 in
Diameter1/4 in
End Pt TypeEndmill
Flute GeometryUpcut
Flute2 'O' Flute
Helix Angle11º
Overall Length2 1/2 in
Shank1/4 in
