Amana Tool ACM Adjustable Width Double Edge V-Scoring Saw Blade Set

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

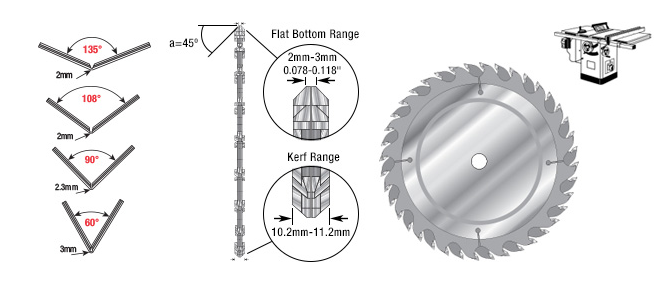

Carbide-Tipped – V-Groove with 2.0 (0.080″) – 3.0mm (0.118″) V-Flat Bottom.

Designed for scoring Aluminum Composite (sandwich) Materials with 60°, 90°, 108°, and 135° angle V-grooves with flat bottom. Set contains two saw blades and a shim set. Add the shims between the blades to achieve your desired flat bottom cut width. Widely used for cladding many diverse exterior and interior applications. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Excellent for scoring: Aluminum, Clay, Zinc & Wood Composite Panels; Aluminum Composite Materials (ACM); Aluminum Composite Panel (ACP)*; ALPOLIC® Copper Composite Material (CCM); Alucobond®; Alupanel®; Dibond®; Durabond**; e-panel™; Etalbond®; Titanium Composite Material (TCM); Trespa®.

The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports, and hotels, along with exterior signage.

*ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage.

**Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

Warning: This set requires a custom zero clearance throat plate.
Warning: Not to be used with portable saws.

Warning: Before use, read saw blade safety guidelines in Amana’s catalog.

Item # DiameterB1BoreGrindKerfSpecs-MiscTeethAngle Price Add To Cart
Compare 508400 8 in0.161 in5/8 inACMRange: 10.2-11.2mm2.0-3.0mm/0.078-0.118" Flat Bottom Range2x2045 º $197.10 Add to cart
Compare 508400-1 8 in0.161 in1 inACMRange: 10.2-11.2mm2.0-3.0mm/0.078-0.118" Flat Bottom Range2x2045 º $197.10 Add to cart
