Amana Tool 82° Countersink w/Adjustable Depth-Stop & No-Thrust Bearing

Edge of Arlington offers free shipping in the United States when you choose flat rate shipping.

Carbide-Tipped Countersink with No Burning and Marring.

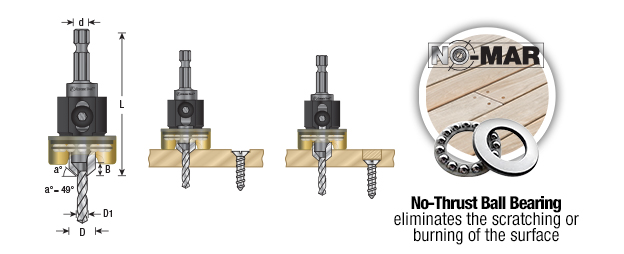

Adjustable Depth Stop with No-Thrust Ball Bearing Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces. It also has an open space to allow for chip evacuation. The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop. Enables users to drill a pilot hole and tapered countersink in one step. The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.

2-Wing quick release 1/4″ hex shank Slow spiral, HSS M2 fully ground drill bit included.

Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement NF1/4 x 1/4 set screw #67070 for tightening depth stop.
Replacement NF1/4-28 x 3/16 set screw #67083 for drill tightening.
Replacement 1/8 x 5/32 double-sided hex key #5019 (included).

Item # DiameterCut Height/LengthDiameter (D1)FluteManufacturerOverall LengthScrew SizeShankAngle Price Add To Cart
Compare 55225 3/8 in3/64-3/8 in3/32 in1/4 inAmana Tool2 5/8 in#41/4 in49 deg $42.53 Add to cart
Compare 55227 3/8 in3/64-3/8 in1/8 in1/4 inAmana Tool2 5/8 in#61/4 in49 deg $42.53 Add to cart
Compare 55228 3/8 in3/64-3/8 in9/64 in1/4 inAmana Tool2 5/8 in#61/4 in49 deg $43.46 Add to cart
Compare 55229 3/8 in3/64-3/8 in5/32 in1/4 inAmana Tool2 5/8 in#81/4 in49 deg $43.46 Add to cart
Compare 55240 1/2 in3/64-3/8 in11/64 in1/4 inAmana Tool2 3/4 in#81/4 in49 deg $43.88 Add to cart
Compare 55242 1/2 in3/64-3/8 in3/16 in1/4 inAmana Tool2 3/4 in#101/4 in49 deg $46.65 Add to cart
